Danfoss 060-201491 Pressure Switch 116-464# SPDT 1/4" Flare

Danfoss 060-201491 Pressure Switch 116-464# SPDT 1/4" Flare
Images for general purposes only. Actual may be different than depicted.
Danfoss 060-201491 Pressure Switch 116-464# SPDT 1/4" Flare Danfoss 060-201491 Pressure Switch 116 to 465 psi Danfoss 060-201491 Pressure Switch SPDT

Danfoss 060-201491 Pressure Switch 116-464# SPDT 1/4" Flare

SKU: 060-201491
Rating:
Quantity Price Stock
4
Usually Ships 1 - 2 Weeks
$137.35     /ea
4

The 060-201491 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product SKU
Danfoss 060-201466 Pressure Switch 1/4" Flare 060-201466

Brand Danfoss
Danfoss 060-201466 Pressure Switch 1/4" Flare
0
$0.00
0
$0.00
0
060-201491

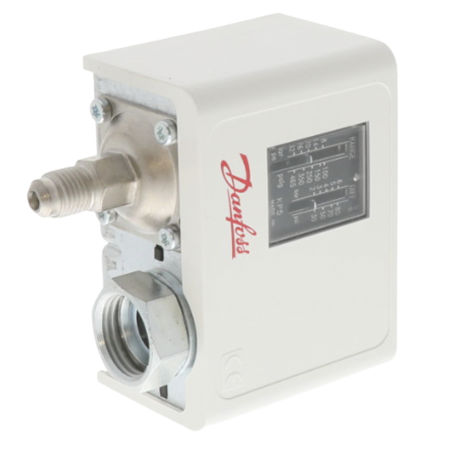

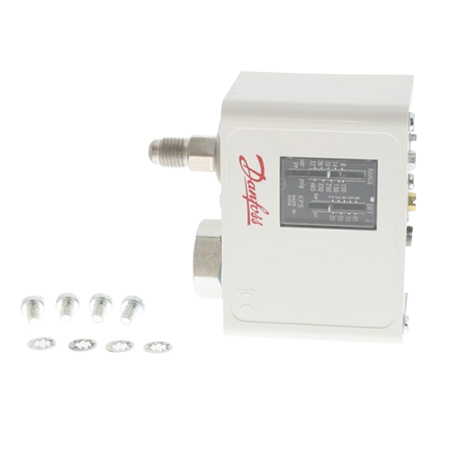

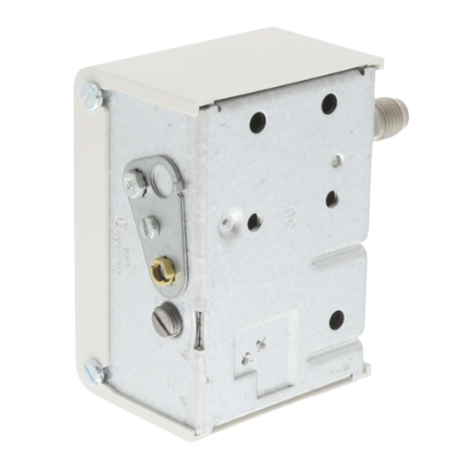

The Danfoss 060-201491 is a pressure switch that has SPDT contacts that allow open or close switching action during pressure rise or fall.  It features a pressure level indicator with a 115 to 465 psi regulating range and 25 to 85 psi differential pressure.  UL-listed.

The KP 5 high-pressure switch is suitable for refrigeration and air conditioning systems such as compressors and fans in air-cooled condensers.  The unit is used as a safety device to prevent excessive high discharge pressure.  It also provides ultra-short bounce time with a snap-action function that minimizes deterioration.

The 060-201491 is easy to install with an integral 1/4" flare connection size and pressure wire connectors for electrical wiring.
Check out the available accessories:

Part No. Description Part No. Description
060-008666 Cover 060-105566 Wall Bracket
060-109766 Top Cover 060-105666 Angle Bracket
060-003166 Protective Cap 060-007066 Capillary Tube 0.5 m
060-033066 IP55 Enclosure 060-017166 Capillary Tube 39"
017-437066 Sensor Packet Brass Well 060-007166 Capillary Tube 39"
017-436966 Sensor Pocket S.S. Well 060-007266 Capillary Tube 59"

Contact Function SPDT
Regulating Pressure Range 15 to 465 psi
Differential Pressure Range 25 to 85 psi
Approvals UL-listed
Connection Size 1/4" Flare
Ambient Temperature Range -40 to 149°F
Maximum Test Pressure 510 psi
Voltage 120/240V
Power Consumption 50 VA
Wattage 12W
