Danfoss 060G3946 Transmitters

Name: Danfoss 060G3946 Transmitters
Brand: Danfoss
SKU: 060G3946
Price: 508.89 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Danfoss 060G3946 Transmitters

SKU: 060G3946

Tariff HS Code: 9032896050

Brand:

Rating:

Quantity	Price	Stock
85 Usually Ships 1 - 2 Weeks	$508.89 /ea	85

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

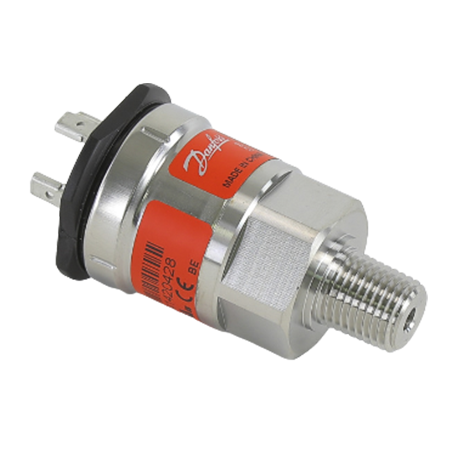

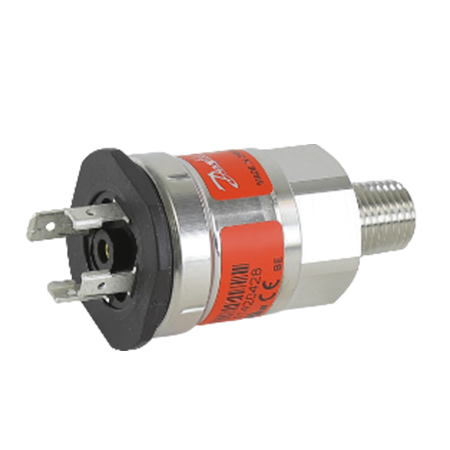

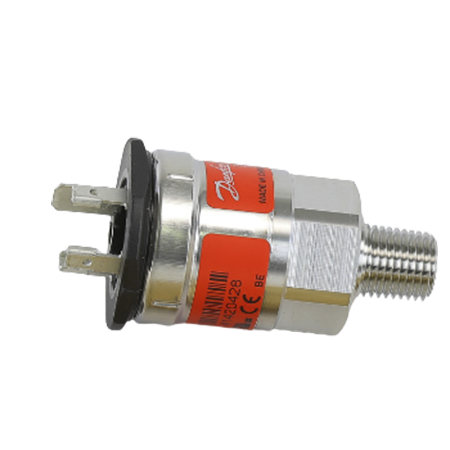

The 060G3946 is a pressure transmitter that has a supply rating of 9 to 32V and 4 to 20 mA current output. The unit has a 0 to 232.06 psi pressure range, 1,392 psi (96 bar) maximum pressure, and 4 ms maximum response time. ATEX-certified, UL & CE-approved.

The pressure transmitter is suitable for heating, industrial, and hydraulic applications. The unit features Ambient Temperature -40°F 185°F (-40°C to 85°C) ambient temperature that provides accurate pressure measurement.

The 060G3946 is quick and easy to install with an enclosure rating of IP65 acid-resistant stainless steel that is resistant to cavitation, liquid hammer, and pressure peaks.

Maximum Response Time	4 ms
Enclosure Rating	IP65
Supply Rating	9 to 32V
Pressure Range	0 to 232 psi
Current Output	4 to 20 mA
Maximum Pressure	1,392 psi (96 bar)
Ambient Temperature	-40°F 185°F (-40°C to 85°C)
Approvals	ATEX-certified, UL & CE-approved

Download Product Information:

Danfoss 060G3946 Transmitters Brochure

Danfoss 060G3946 Transmitters Data Sheet

Danfoss 060G3946 Transmitters Installation Guide

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

I have a Danfoss MBS 3000 pressure sensor with an operating range of 0 to 25 bar. According to the spec sheet the code number should be 060G1430. The number on my sensor is 060G3947. Is there another spec sheet I should be looking at?

Asked on December 18, 2017 by jay from warsaw, in

1 Answers

Have an answer? Click Here

According to the literature and the table below, the closest to your specifications would be the 060G1144. Neither of the part numbers you've provided are listed under the MBS 3000. So it's possible those numbers refer to a different series, or they could be old part numbers that have been superceded.

Replied on December 18, 2017 by Ron from Industrial Stores
