Danfoss 060G3947 Compact Pressure Transmitter MBS3000 0-362.5 PSI 4-20Ma

Name: Danfoss 060G3947 Compact Pressure Transmitter MBS3000 0-362.5 PSI 4-20Ma
Brand: Danfoss
SKU: 060G3947
Price: 507.78 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Danfoss 060G3947 Compact Pressure Transmitter MBS3000 0-362.5 PSI 4-20Ma

SKU: 060G3947

Brand:

Rating:

Quantity	Price	Stock
1 Usually Ships 1 - 2 Weeks	$507.78 /ea	1

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

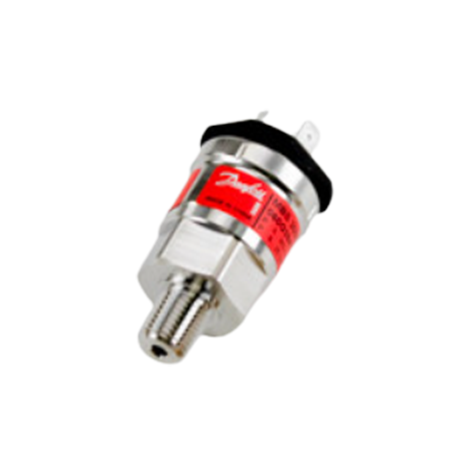

The 060G3947 (MBS3000) is a compact pressure transmitter that has a 4 to 20 mA output signal and a 28 mA maximum current limit. The transmitter is constructed with an enclosure that is wetted with acid-resistant stainless steel. CE-marked.

The pressure transmitter is suitable for severe industrial, hydraulic environment, and zone 2 explosive atmosphere applications. The unit is designed to be resistant to cavitation, liquid hammer, and pressure peaks and provide optimum vibration stability.

The 060G3947 is temperature-compensated and laser calibrated for quick and easy installation.

Output Signal	4 - 20 mA
Output Impedence	≥ 25 kΩ
Current Limit	28 mA
Accuracy	≤ ± 0.5% FS to ≤ ± 1% FS
Approval	CE-marked

Download Product Information:

Danfoss Compact Pressure Transmitter Spec Sheet

Danfoss 060G3947 Compact Pressure Transmitter Technical Datasheet
