Danfoss 067B3303 Thermostatic Expansion External Balancing Valve Type PHT

Name: Danfoss 067B3303 Thermostatic Expansion External Balancing Valve Type PHT
Brand: Danfoss
SKU: 067B3303
Price: 172.78 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Danfoss 067B3303 Thermostatic Expansion External Balancing Valve Type PHT

SKU: 067B3303

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 1 Week Usually Ships 1 Week	$172.78 /ea	Usually Ships 1 Week

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

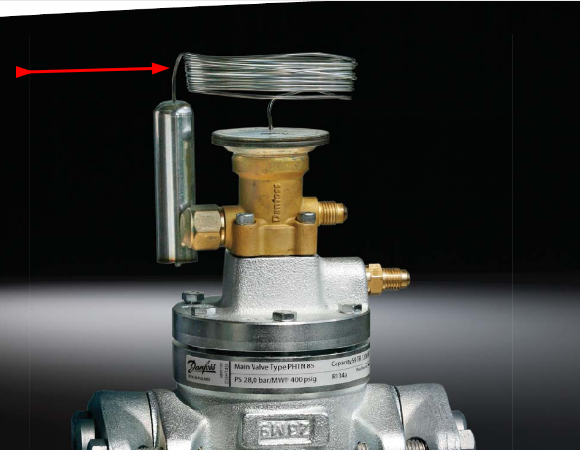

Danfoss Thermostatic Expansion Valve

The 067B3303 is a Danfoss PHT series thermostatic expansion valve. PHT thermostatic expansion valves regulate the injection of refrigerant liquid into evaporators. Injection is controlled by the refrigerant superheat. Therefore the valves are especially suitable for liquid injection in ”dry“ evaporators where the superheat at the evaporator outlet is proportional to the evaporator load.

Features:

Range: –40 to +50°C Equally applicable to freezing, refrigeration and air conditioning plant.
Interchangeable orifice assembly - easier stocking - easy capacity matching - better service.
Very tight main orifice Also used as solenoid valve (not PHT 300)
Rated capacities from 105 to 1890 kW (30 to 540 TR) for R22
Can be supplied with MOP (Max. Operating Pressure) Protects the compressor motor against excessive evaporating pressure.
Patented double contact bulb Fast and easy to install. Good temperature transfer from pipe to bulb.

Application:

Air Conditioning System
Heat pump
Chillers
Freezer (Cabinet)
Traditional refrigeration systems

Refrigeration Type	R22, R470C, R134a, R404A / R507
Maximum Temperature	When Valve Installed 100C, Element not mounted 60C
Minimum Temperature	-50C
Maximum Test Pressure	85 & 125 PSI (300 bar)
Permissible Working Pressure	85 & 125 PSI (300 bar)
