Danfoss 067N3160 Thermostatic Expansion Valve TGE Series 5/8" x 1-1/8" R410A

Name: Danfoss 067N3160 Thermostatic Expansion Valve TGE Series 5/8" x 1-1/8" R410A
Brand: Danfoss
SKU: 067N3160
Price: 265.94 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Danfoss 067N3160 Thermostatic Expansion Valve TGE Series 5/8" x 1-1/8" R410A

SKU: 067N3160

Brand:

Rating:

Quantity	Price	Stock
1 Usually Ships 2 - 4 Weeks	$265.94 /ea	1

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

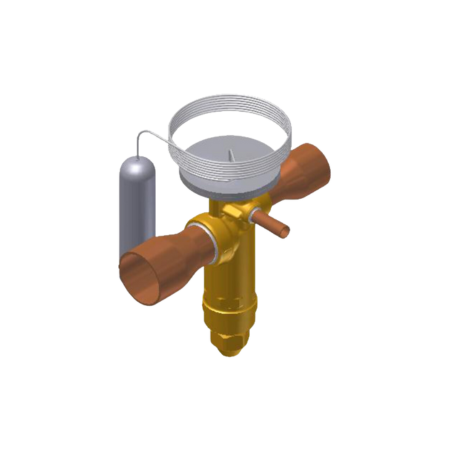

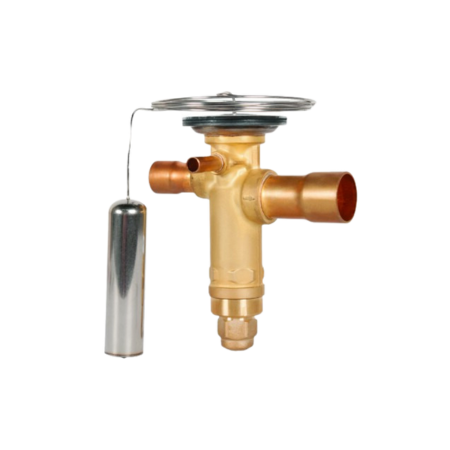

The Danfoss 067N3160 is a thermostatic expansion valve from TGE Series with a 5/8" x 1-1/8" ODF connection. This device consists of a bulb strap, capillary tube, and an orifice with 54 kW (15 tons) capacity for R410A refrigerant. UL Certified.

The thermostatic expansion valve features a balance port design that prevents pressure drop changes across the valve and provides application control. This component also has a low hysteresis, straightway flow, and adjustable superheat setting.

The TGE is used for applications like heat pumps, water chillers, refrigerated containers, air conditioning systems, and traditional refrigeration systems.

Orifice Capacities	54 kW (15 tons)
Connection Material	Copper
Body Material	Brass
Superheat Setting	Adjustable
Capillary Tube	59"
Maximum Operating Pressure	711 psig (49 bar)
Valve Body Temperature	100°C (210°F)
Operating Temperature Range	-40 to 10°C (-40 to 50°F)
Refrigerant	R410A
Static Superheat	4°C (7.2°F)

Download Product Information:

Danfoss TGE Thermostatic Expansion Valve Technical Datasheet

Danfoss TGE Thermostatic Expansion Valve Installation Instructions
