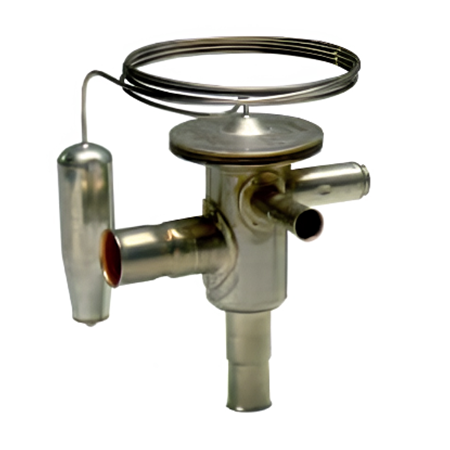

Danfoss 068U1867 Thermostatic Expansion Valve 3/8" x 1/2" R134A Angle Way

Name: Danfoss 068U1867 Thermostatic Expansion Valve 3/8" x 1/2" R134A Angle Way
Brand: Danfoss
SKU: 068U1867
Price: 87.65 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Danfoss 068U1867 Thermostatic Expansion Valve 3/8" x 1/2" R134A Angle Way

SKU: 068U1867

Brand:

Rating:

Quantity	Price	Stock
1 Usually Ships 3 - 4 Weeks	$87.65 /ea	1

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The 068U1867 is a thermostatic expansion valve that has a -40 to 10°C temperature range and 34 bar maximum working pressure. The is designed with an angle way direction and a filter that provides high dirt retention capacity.

The thermostatic expansion valve is suitable for refrigeration and air conditioning system applications. The unit is used for filling the evaporator with liquid with fluorinated refrigerants. It is constructed with stainless steel and provides excellent temperature transfer from pipe to the bulb.

The 068U1867 is quick and easy to install with bi-metal connections that eliminate the need to ‘wet rag’ braze.

Temperature Range	-40 to 10°C (-40 to 50 °F)
Maximum Working Pressure	34 bar
Opening superheat OS	4K
Inlet Size	3/8"
Outlet Size	1/2"
Capillary Tube Length	5 ft.
Refrigerant	R134A
Maximum Working Pressure	500 psi

Download Product Information:

Danfoss 068U1867 Thermostatic Expansion Valve Technical Datasheet
