Danfoss 114N2022 Condensing Unit 115V R134A 1/3 Hp

Danfoss 114N2022 Condensing Unit 115V R134A 1/3 Hp
Images for general purposes only. Actual may be different than depicted.
Danfoss 114N2022 Condensing Unit 115V R134A 1/3 Hp Danfoss 114N2022 Air Cooled Condenser Danfoss HCGC0033RWB000B Medium-High Condenser Unit

Danfoss 114N2022 Condensing Unit 115V R134A 1/3 Hp

SKU: 114N2022
Rating: (1)
Quantity Price Stock
2
Usually Ships 1 Week
$526.01     /ea
2

This product is Non-Cancelable-Non-Returnable - Check below to Acknowledge*

Shipping Note

Ships via LTL ( Truck )

This product is Non-Cancelable-Non-Returnable - Check below to Acknowledge

0
$0.00
0
$0.00
0
114N2022

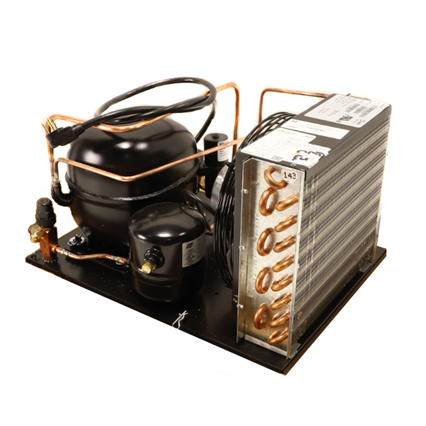

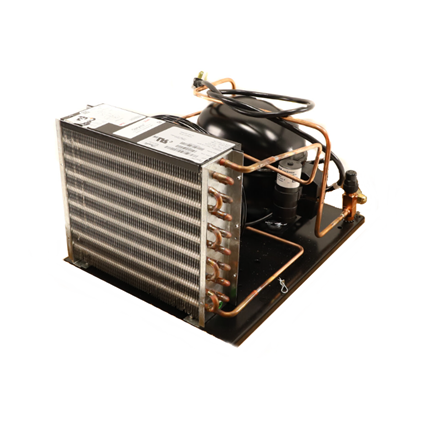

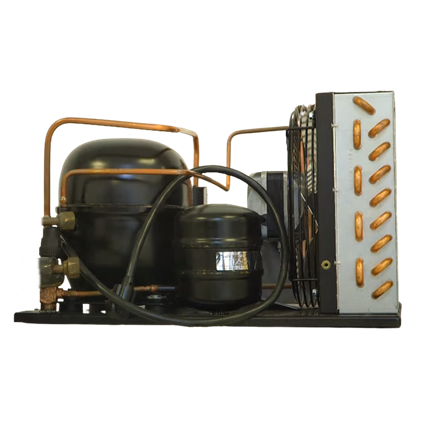

The Danfoss 114N2022 (HCGC0033RWB000B) is a single-fan air-cooled condenser with a reciprocating hermetic compressor.  It uses R134A as a cooling agent and has a nominal cooling capacity of 1.2 kW at 60 Hz.  The condenser operates at 115V, 1 ph, and 60 Hz.

The Optyma 114N2022 condenser unit composes of a large condenser for high ambient conditions, a sturdy metal fan shroud & guard, a start capacitor, relay, standard service valve for trouble-free system access, and a quiet serviceable compressor.  These Optyma units are used for cooling systems such as refrigerated locker and cold room manufacturers.

Available replacement parts for 114N2022:

MODEL NUMBER DESCRIPTION
195B0388 Compressor
119-5662 Fan Motor
119-5669 Fan Blade
119-8045 Condenser
119-7771 Start Capacitor
119-7759 Relay
Horsepower 1/3 HP
Suction Line 3/8" SAE (Flare)
Liquid Line 1/4" SAE (Flare)
Fan Motor Voltage 115V
Number of Phase 1 PH
Hertz 60 Hz
Nominal Cooling Capacity at 60Hz 1.2 kW
Refrigerant R134A
Oil Type Polyolester
Approval UL recognized

Download Product Information:

Danfoss Optyma Condensing Units Catalog
