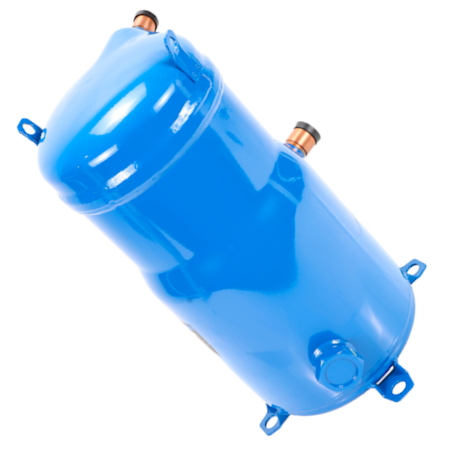

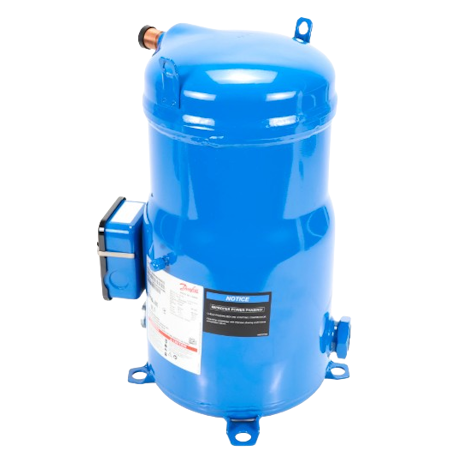

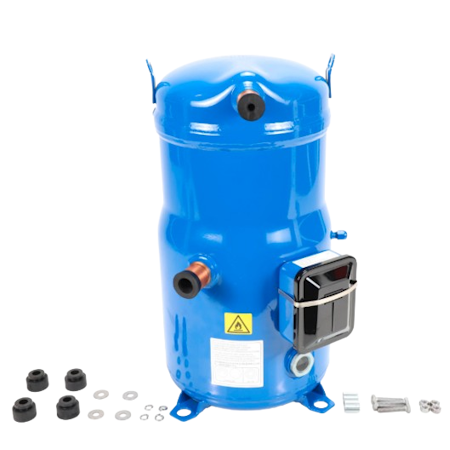

The Danfoss 120H1511 (DSH090A4ALD) is a scroll compressor designed for air conditioning and refrigeration systems using R410A, R452B, and R454B refrigerants. It delivers a cooling capacity of 92,543 BTU and operates on 460V, 3-phase power, ensuring reliable and consistent performance for medium to large-scale applications. Built with precision-engineered components, it provides smooth operation and low vibration levels.
The scroll compressor offers optimized energy efficiency, high durability, and compatibility with modern HVAC system designs. It is ideal for commercial air conditioning units, heat pumps, and refrigeration systems requiring stable cooling under varying load conditions. Its compact design allows for easy integration and quiet operation within system enclosures.
The 120H1511 compressor can be installed vertically and connects seamlessly with compatible Danfoss components. This directly replaces part number 120H0003.
| Voltage | 460V |
|---|---|
| Refrigerants | R410A, R452B, and R454B |
| Frequency | 50/60 Hz |
| Capacity Control | Fixed speed |
| Discharge Connection Size | 7/8" |
| Oil Charge | 3 Liter |
| Oil Type | POE |
| Number of Phases | Three-Phase |
| Power Connections | Screw 4.8 mm |
| Approvals | CE, UKCA, and UL-recognized |
