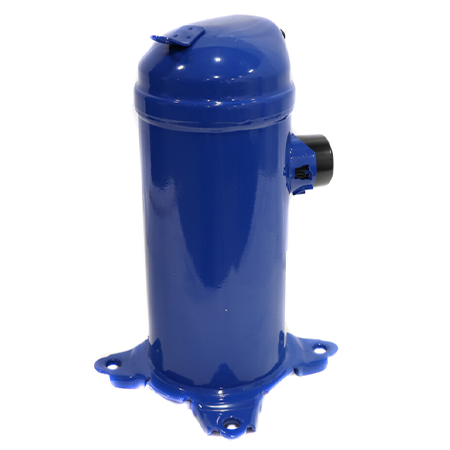

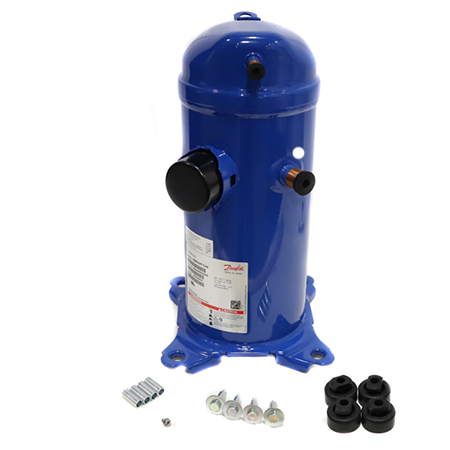

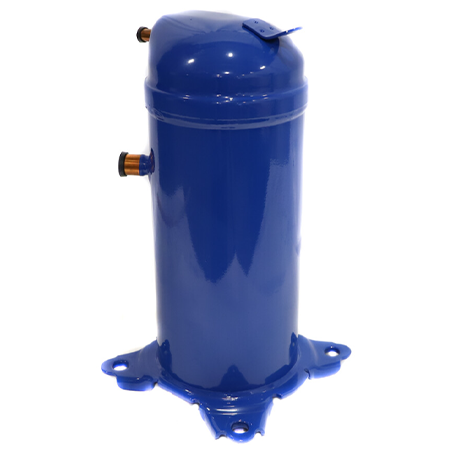

The 121L3349 is a compressor that operates at 208-230V power and provides 4.5 tons cooling capacity. It has a 3500 RPM rotation speed and includes internal overload protection for enhanced durability. The compressor has brazed connections for a 1/2" discharge pipe and a 7/8" suction pipe.
The compressor is ideal for R22 and R407C refrigerant applications. It features a fixed-speed capacity control allowing excellent performance during operation. The 120Z5064 compressor mounting kit replacement part is also available.
The 121L3349 is easy to install with brazed connections that match standard ODF fittings. This replaces part number 120U1506, 120U3212, S1-015-05078-004, and 120U3213 Compressors.
| Voltage | 208/230V |
|---|---|
| Capacity | 4.5 Ton |
| Refrigerant | R22 and R407C |
| Frequency | 60 Hz |
| Discharge Connection Size | 1/2" |
| Suction Connection Size | 7/8" |
| IP Protection Class | IP22 |
| Rotation Speed | 3500 RPM |
| Number of Phases | Singel-Phase |
| Approvals | UL-recognized |
