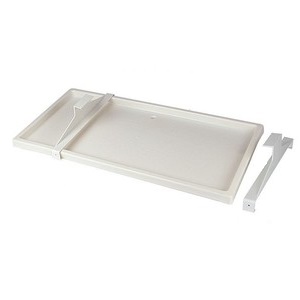

DiversiTech 230-DPPL Condensate Drain Pan is composed of either:

• White UV-stabilized and reinforced polypropyline
• Whtie powder coated steel

When a mini-split system operates in heat pump mode, the outdoor coil becomes the evaporator coil. Typically, condensation generates from the evaporator coil. In certain installations, the condenser coil may be mounted overhead on brackets affixed to a wall. In these overhead applications, dripping condensation may be a nuisance. Condensate drain pans bolt onto the condenser mounting brackets, and the drain line can be plumbed to a nearby drain location. Furnished complete with all mounting hardware and drain pan outlet, condensate drain pans are available in either plastic or powder coated steel.
With an adjustable support system, this pan is adaptable to any bracket. Water never stays stagnant due to the lower elevation of the pan near the drain hole, which is either 16, 18, or 20mm in diameter. The strong powder coat or poly construction help to resist rust.


Features:

•  SpeediChannel
•  Bolts onto the condenser mounting brackets
•  Allows for the drain line to be plumbed to a suitable nearby drain location
•  Furnished with mounting hardware and drain pan outlet
•  Size: Large
• Adjustable support system - This plastic drain pan is adaptable to any bracket.
• Comes complete with all mounting hardware and drain pan outlet.
• Strong poly construction - It helps to resist rust.
• Furnished in 160 feet lengths with cut marks every 3.28 feet.
• This large diameter drain line is typical for Mini-Split installations.
• A unique drain line for Mini-Split units.

Application:
This pan is designed to intall under outdoor air condensing units of mini split arrangements.

Installation:

1. Furnished complete with all mounting hardware and drain pan outlet.
2. Type 2 brackets have Fixation holes in arm supports
