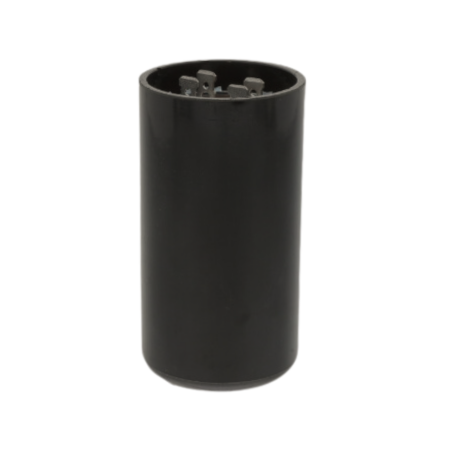

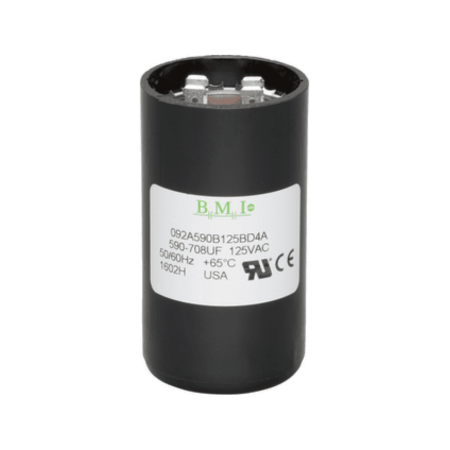

The DiversiTech 590-708 is a motor start capacitor operating with 110/125V and 50/60 Hz power supply. The capacitor has a plastic housing with 590-708MFD. UL Recognized.
The motor start capacitor is dry, electrolytic, and non-polarized which makes a motor turn on and off fast. This features a round molded case to protect the device from oil, dirt, moisture, and grease.
The 590-708 directly replaces Mars 11927 and Supco CS590-708X110. It is compatible for use with intermittent service on single-phase air conditioning motor starting circuits.
| Terminal | Standard Dual Blade |
|---|---|
| Approval | UL Recognized |
| Operating Temperature Range | -40 to 65°C (-40 to 149°F) |
| Voltage | 110/125V |
| Housing Material | Plastic |
| Start MFD | 590-708µF |
| Frequency | 50/60 Hz |
| Number of Leads | 4 |
| Shape | Cylinder |
| Capacitor Style | Start |
