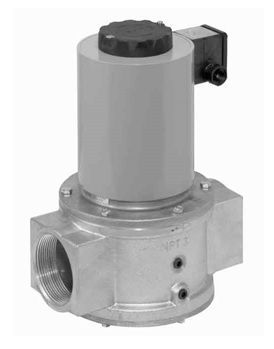

The DUNGS MVD/6 and MVDLE/6 electrically operated, normally closed, automatic shutoff valves for gas burning equipment.
Application
The MVD/6 and MVDLE/6 are recommended for industrial and commercial heating applications that require one or two automatic shutoff valves in series. The MVD and MVDLE valves are suitable for natural gas, propane, butane, air and other inert gases.
Code requirements vary. FM requires visual indication on1" and larger safety valves. The visual indicator, (VI) 266949 and CPI 400 (266968) meet this requirement. These must be ordered separately.
| Maximum Operating Pressure | MVD - 7 PSI (500 mbar) [5 PSI @ CSA |
|---|---|
| Enclosure Rating | NEMA Type 12 (.../602 Series) NEMA Type 4 (.../604 Series) |
| Electrical Connection | Screw Terminals with 1/2" NPT conduit connection |
| Operating Time | 100% duty cycle |
| Ambient Temperature Rating | -20 °F to +120 °F (-30 °C to +50°C) |
