Dungs 224-845 Dual Modular Valve DMV-DLE 701/602 Series 120VAC

Name: Dungs 224-845 Dual Modular Valve DMV-DLE 701/602 Series 120VAC
Brand: Dungs Inc.
SKU: 224845
Price: 1004.36 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Dungs 224-845 Dual Modular Valve DMV-DLE 701/602 Series 120VAC

SKU: 224845

Brand:

Rating:

Quantity	Price	Stock
Usually Ships from Stock Usually Ships from Stock	$1,004.36 /ea	Usually Ships from Stock

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Dungs 224-845 Dual Modular Valve DMV-DLE 701/602 Series 120VAC

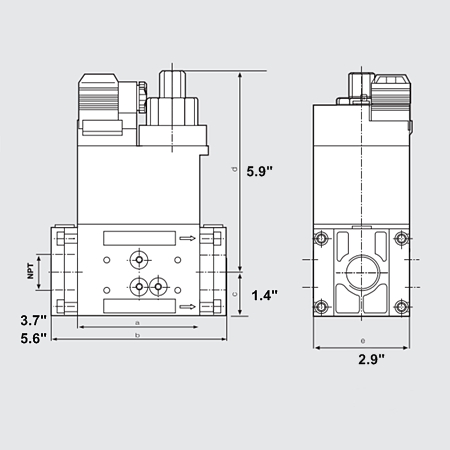

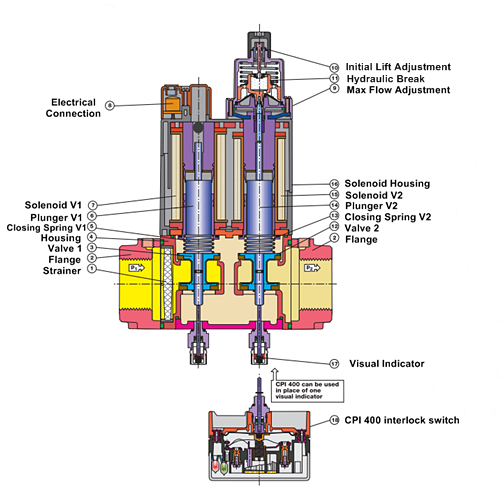

The DUNGS Dual Modular Valve (DMV-D(LE)/602) combines two normally closed, automatic shutoff valves in one compact housing, which can be wired independently or in parallel. Valve 1 (V1) of the DMV-D and DMV-DLE series is fast opening and fast closing. Valve 2 (V2) of the DMV-D is fast opening, while V2 of the DMV-DLE is slow-opening for smoother light-off. Max. flow adjustment on V2 provides variable main flow on both models.

Application
The DMV/6 is recommended for industrial and commercial heating applications that require two safety shutoff valves in series. The DMV is suitable for natural gas, propane, butane, air and other inert gases.

Optional Approvals
When ordered and installed with Burkert connector plug (part number 253731), the UL Recognized DMV valve may replace a UL Listed valve. Such a substitution is typically required for equipment UL Listed to UL 295/UL 795.

Flow (CFH) Natural Gas - 0.65 Specific Gravity at 60°F with 1 in. W.C. Pressure Drop @ 1.25 PSI Inlet Pressure
DMV 701	1/2"	3/4"	1"
	345	429	457

Karl Dungs DMV-D Valve	Flange Size	NPT Flange Part #	Rp Flange Part #	O-Ring & Bolt Kit Part #	FRI Mounting Kit Part #	Integral Filter & Strainer Replacement
DMV 701/602	1/2"	222-371	222-341	224-093	219-967	230-440
	3/4"	222-368	222-342	224-093	219-967	230-440
	1”	221-999	222-001	224-093	219-967	230-440

Initial Lift Adjustment on V2	0 to 70 % of total flow; 0 to 35% of stroke
Max Flow Adjustment on V2	<10 to 100 % of total flow; <10 to 100% of stroke
Closing Time	< 1 s
Opening Time	V1 < 1 s;V2 Adjustable to approx. 10 to 20 s at 70 °F
Ambient Temperature Rating	-40 °F to +150 °F (-40 °C to +65 °C)
Operating Time	100% duty cycle
Enclosure Rating	NEMA Type 12
Maximum Operating Pressure	7 PSI (500 mbar) UL, FM; 5 PSI ( 360 mbar) CSA
Electrical Connection	DIN connector with 3/4” NPT conduit adapter
Approval	UL, FM, CSA, Commonwealth of Massachusetts

Download Product Information:

Karl Dungs Dual Modular Valve Series 602 Datasheet

Karl Dungs Dual Modular Valve Series 602 Installation Manual

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

What is the difference between a 701/622 and 701/602

Asked on June 06, 2017 by Craig from Hillsdale MI

1 Answers

Have an answer? Click Here

The Karl Dungs or KDI Dual Modular Valve DMV-DLE 701/602 Series and the Dual Modular Valve DMV-DLE 701/622 Series are both Dual Modular Valves (DMV) that combines two automatic shutoff valves in one compact housing, which can be wired independently or in parallel. Both can be used with dry natural gas, propane, butane, air and inert gases.

On both the the 701/602 and 701/622 valve 1 (V1) of the DMV-D and DMV-DLE series is fast opening and fast closing. Valve 2 (V2) of the DMV-D is fast opening, while V2 of the DMV-DLE is slow opening for smoother light-off. Max. flow adjustment on V2 provides variable main flow on both models. In addition, they are both suiatable for industrial and commercial heating applications that require two safety shutoff valves.

The main difference is that the DMV/622 is recommended for industrial and commercial heating applications that require two safety shutoff valves and “proof of closure” valve seal overtravel and interlock.

Valve 2 (V2) incorporates “proof of closure”.

The DMV-D/622 has two normally closed automatic shutoff valves in one housing. Valve 2 (V2) incorporates “proof of closure”. V1 and V2 are fast opening, fast closing.
The DMV-DLE/622 has two normally closed automatic shutoff valves in one housing. Valve 2 (V2)incorporates “proof of closure”. V1 fast opening, fast closing. V2 is slow opening, fast closing.

Replied on June 06, 2017 by Ori from Industrial Stores
