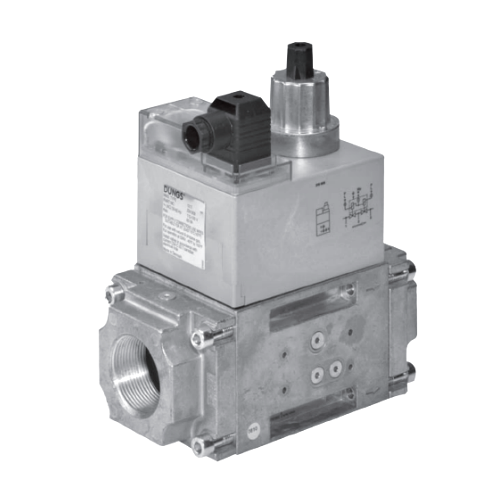

Dungs 224-846 Dual Modular Valve DMV-DLE 702/602 Series 120VAC

Dungs 224-846 Dual Modular Valve DMV-DLE 702/602 Series 120VAC
Images for general purposes only. Actual may be different than depicted.

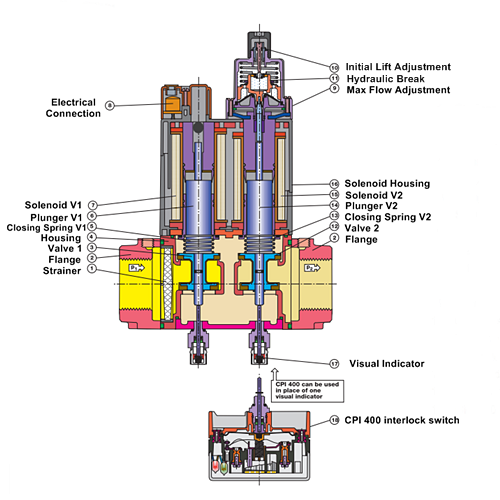

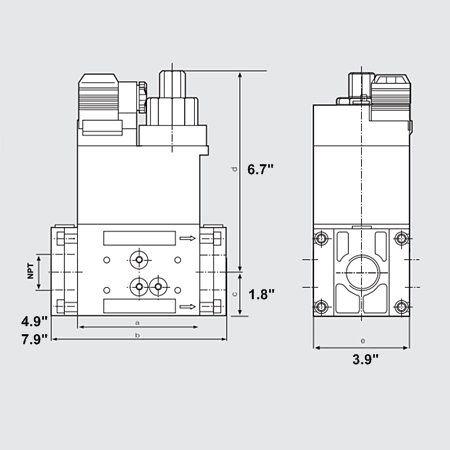

Dungs 224-846 Dual Modular Valve DMV-DLE 702/602 Series 120VAC Dungs 224-846 Dual Modular Valve DMV-DLE 702/602 Parts Dungs 224-846 Dual Modular Valve DMV-DLE 702/602 Dimensions

Dungs 224-846 Dual Modular Valve DMV-DLE 702/602 Series 120VAC

SKU: 224846
Rating:
Quantity Price Stock
Usually Ships from Stock
Usually Ships from Stock
$924.15 /ea
Usually Ships from Stock
0
$0.00
0
$0.00
0
224846
Dungs 224-846 (DMV-DLE 702/602) Dual Modular Safety Shutoff Valves are designed to be in one compact housing. It consists of two valves that are normally closed, the first valve opens fast and fast closing while the second valve opens slowly to give smoother light-off.  The following gas types such as natural gas, propane, butane, air, and other inert gases are suitable for the shutoff valve.

The Dungs DMV-DLE...602 Dual Modular Valves are used in industries that require two safety shutoff valves for heating applications.  The installation position is vertically upright to horizontal. For clean operation, the DMV provides a 23 mesh 230-441 gas strainer that is installed on valve 1 and an optional replaceable gas filter can be used.  These valves carry UL, CSA, and FM approved certifications.

You can purchase the following accessories:

MODEL NO. DESCRIPTION
210-319 DIN Electrical Connector
224-253A CPI 400 Valve Switch
217-665A Visual Indicator
225-047 Adapter 1/4" NPT
225-043 Pilot Gas Adapter 1/2" NPT
219-008 Test Nipple G1/8
214-975 Port 3 Pressure Switch Mounting Adapter
219-968 Replacement FRI to DMV mounting kit
224-094 O-ring and Bolt Kit

Replacement Parts for DMV-702/602 with 1" to 2" Flange:

FLANGE NPT RP
1" 222-369 222-343
1 1/4" 222-370 222-344
1 1/2" 222-003 221-884
2" 221-997 221-926

Note: Flanges are ordered separately.

Enclosure Rating NEMA Type 12
Maximum Operating Pressure 7 PSI (500 mbar) UL, FM; 5 PSI ( 360 mbar) CSA
Operating Time 100% duty cycle
Maximum Body Pressure 15 PSI (1000 mbar)
Ambient Temperature Rating -40 °F to +150 °F (-40 °C to +65 °C)
Electrical Connection DIN connector with 3/4” NPT conduit adapter
Electrical Ratings 110 - 120 VAC @ 50 - 60 Hz
Closing Time <1 s
Opening Time V1 < 1 s; V2 Adjustable to approx. 10 to 20 s at 70 °F
Approval UL, CSA, FM, Commonwealth of Massachusetts
