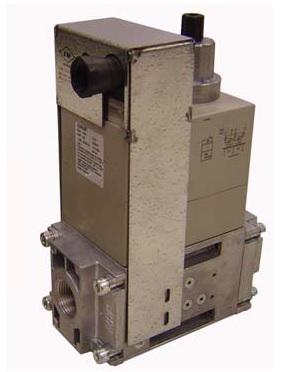

The DUNGS Dual Modular Valve (DMV-DLE) combines two normally closed, automatic shutoff valves in one compact housing, which can be wired independently or in parallel. Valve 1 (V1) of the DMV-DLE series is fast opening and fast closing. Valve 2 (V2) of the DMV-DLE is slow-opening for smoother light-off. Max. flow adjustment on V2 provides variable main flow on both models. Hazardous location models are suitable for Class 1; Division 2 installations.
Application
The DMV/6 is recommended for industrial and commercial heating applications that require two safety shutoff valves in series. The DMV is suitable for natural gas, propane, butane, air and other inert gases.
Conduit Adapter (240671), DIN connector (210319), and flanges must be ordered and priced separately. 103 Dual Modular Valves Hazardous Location version - DMV-D(LE) Model
| Maximum Operating Pressure | 7 PSI (500 mbar) FM; 5 PSI ( 360 mbar) CSA |
|---|---|
| Electrical Ratings | 24 Vac/50 - 60 Hz; 24 Vdc |
| Enclosure Rating | NEMA Type 12 |
| Electrical Connection | DIN connector with 1/2" NPT conduit adaptor |
| Ambient Temperature Rating | -40°F to +150 °F (-40 °C to +65 °C) DMV-DLE 703 |
