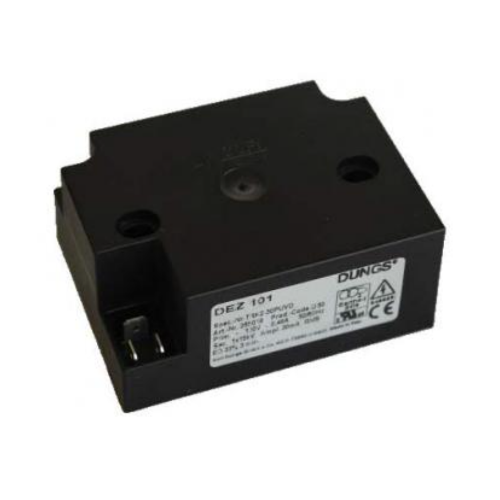

Dungs 255018 Ignition Transformer DEZ 101 120VAC

Name: Dungs 255018 Ignition Transformer DEZ 101 120VAC
Brand: Dungs Inc.
SKU: 255018
Price: 62.62 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Dungs 255018 Ignition Transformer DEZ 101 120VAC

SKU: 255018

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 1 - 2 Weeks Usually Ships 1 - 2 Weeks	$62.62 /ea	Usually Ships 1 - 2 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The Dungs 255018 (DEZ 101) is an oil and gas burner electronic ignition transformer with IP54 enclosure. This high-voltage transformer has a primary voltage of 120VAC and a secondary voltage (+/- 10%) of 1x15kV. The current consumption is 0.5A and a 55VA power consumption. It is UL Recognized and CE certified.

The Dungs DEZ transformers are constructed to provide high performance with high-frequency oscillation technology. Made to be smaller, lighter, and available in two versions with different voltage outputs. First version, the DEZ 1xx with high voltage output suitably for ignition against the burner mass. Secondly, the DEZ 2xx with two high-voltage outputs for ignition between the electrodes.

Note: A non-standard ignition cable is required for DEZ transformers and may only be put into operation if the ignition electrodes are built into the touch-proof burner. The ignition line must not exceed 1m and it is mandatory to connect the protective earth.

High-Voltage Outputs	1
Mains Voltage	120VAC
Frequency	50/60Hz
Current Consumption	0.5A
Power Consumption	55VA
Secondary Voltage +/- 10%	1x15kV
Secondary Frequency	13kHz
Short Circuit Current	30mA
Duty Cycle 3 min.	33%
Ambient Temperature	-20-60C

Download Product Information:

Dungs DEZ Ignition Transformer Technical Datasheet

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

Will this replace a Honeywell Q652A1007(OIL) dual ignition transformer?

Asked on December 30, 2022 by Christopher from Chicago IL

1 Answers

Have an answer? Click Here

The Dungs 255018 and Honeywell Q65A1007 are both electronic ignition transformers designed for use with oil and gas burners.

Bothy operate with 120 VAC as the main voltage. However, the 255018 has a secondary voltage of 15 kV and the Q65A1007 19.3 kV.

The Honeywell Q65A1007 is dual high voltage electrodes for oil. The Dungs 255018 DEZ101 is "a single high voltage output for ignition against the burner mass" For "two high-voltage outputs for ignition between electrodes" the DEZ 2xx versions may be better suited. However, this unit is 230 VAC.

We highly suggest that prior to purchasing any transformers, you have licensed and professional technician review your equipment and make the appropriate transformer selection. There are many safety variables that must be considers for each application and in accordance with local rules and regulations. Please consult a professional to review your system and application.

Replied on January 06, 2023 by Ori from Industrial Stores
