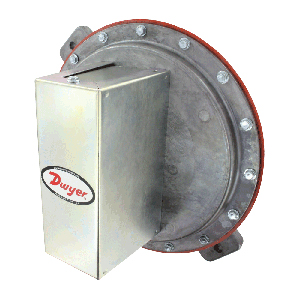

Single and dual pressure switch, range .15-1.5" w.c., .10 min. deadband, .20 max. deadband, 0.5 adj. diff. between set points. Model 1626 has a single electric switch and a diaphragm sealed motion take outs providing maximum protection against leakage. SPECIFICATIONS Service: Air and non-combustible, compatible gases. Wetted Materials: Consult factory. Temperature Limits: -30 to 130?F ( -34.4 to 54.4?C). Pressure Limits: Max. 50 in. w.c. (12.44 kPa) continuous, 2 psig (13.79 kPa) surge. Switch Type: 1626, Single-pole double- throw (SPDT); Repeatability: ?1%. Electrical Rating: 15 A @ 120-480 VAC, 60 Hz. Resistive, 1/8 HP @ 125 VAC,1/4 HP @ 250 VAC, 60 Hz. Electrical Connections: 3 screw type, common, normally open and normally closed. Process Connections: 1/8Ë female NPT. Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations. Set Point Adjustment: Screw Adjustment. Weight: Model 1626, 3 Ib, 9.8 oz Agency Approvals: CE.
