Dwyer 628-10-GH-P1-E1-S1 0-100# Transmitter 4-20Ma Out

Name: Dwyer 628-10-GH-P1-E1-S1 0-100# Transmitter 4-20Ma Out
Brand: Dwyer
SKU: 628-10-GH-P1-E1-S1
Price: 154.17 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Dwyer 628-10-GH-P1-E1-S1 0-100# Transmitter 4-20Ma Out

SKU: 628-10-GH-P1-E1-S1

Brand:

Rating:

Quantity	Price	Stock
3 Usually Ships 1 - 2 Weeks	$154.17 /ea	3

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

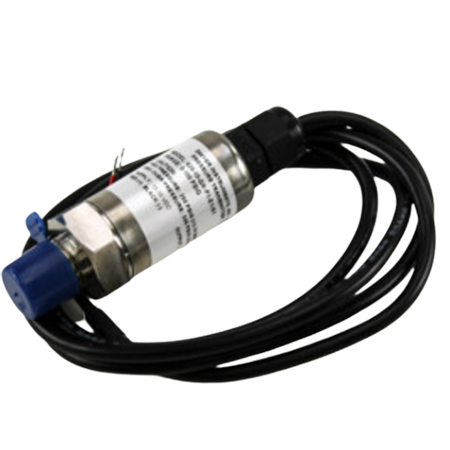

The 628-10-GH-P1-E1-S1 is a pressure transmitter that has a 0 to 100 psi range and a 1/4" male NPT connection size. It has a 4 to 20 mA signal output with a NEMA 4X (IP66) stainless steel general-purpose housing. UL-listed, NSF, and CE approved.

The pressure transmitter is constructed with a piezo-resistive sensor that provides excellent performance with 1.0% FS accuracy. It is designed with a rugged 316 stainless steel oil-filled sensor allowing efficiency during operation

Check out the suitable applications:

Compressors
Hydraulic
Booster Stations
Pumping Systems
Irrigation Equipment
PTO Systems
Submersible Pump Control
Industrial Process Monitoring

The 628-10-GH-P1-E1-S1 is easy to install with a cable gland and a 3" pre-wired cable for quick mounting.

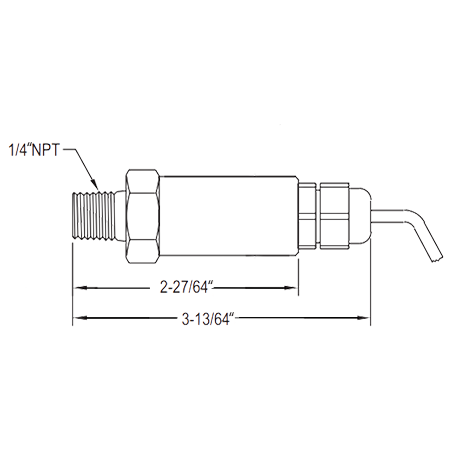

Process Connection Size	1/4" male NPT
Approvals	UL-listed, NSF, and CE approved
Enclosure Rating	NEMA 4X (IP66)
Enclosure Material	Stainless Steel
Pressure Range	0 to 100 psi
Signal Output	4 to 20 mA
Accuracy	1% FS
Temperature Limit	0 to 200°F (-18 to 93°C)
Response Time	300 ms
Maximum Current Consumption	38 mA

Download Product Information:

Dwyer 628-10-GH-P1-E1-S1 Pressure Transmitter Installation Instructions

Dwyer 628-10-GH-P1-E1-S1 Pressure Transmitter Catalog
