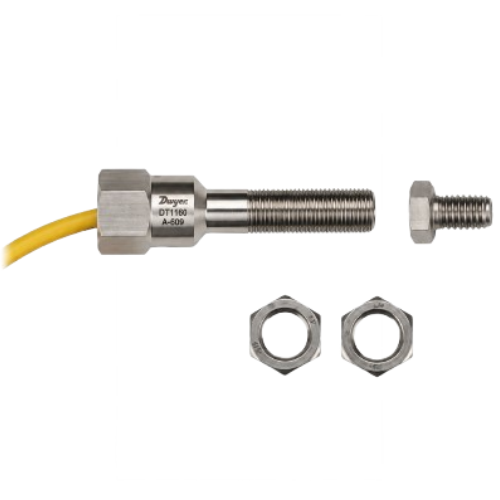

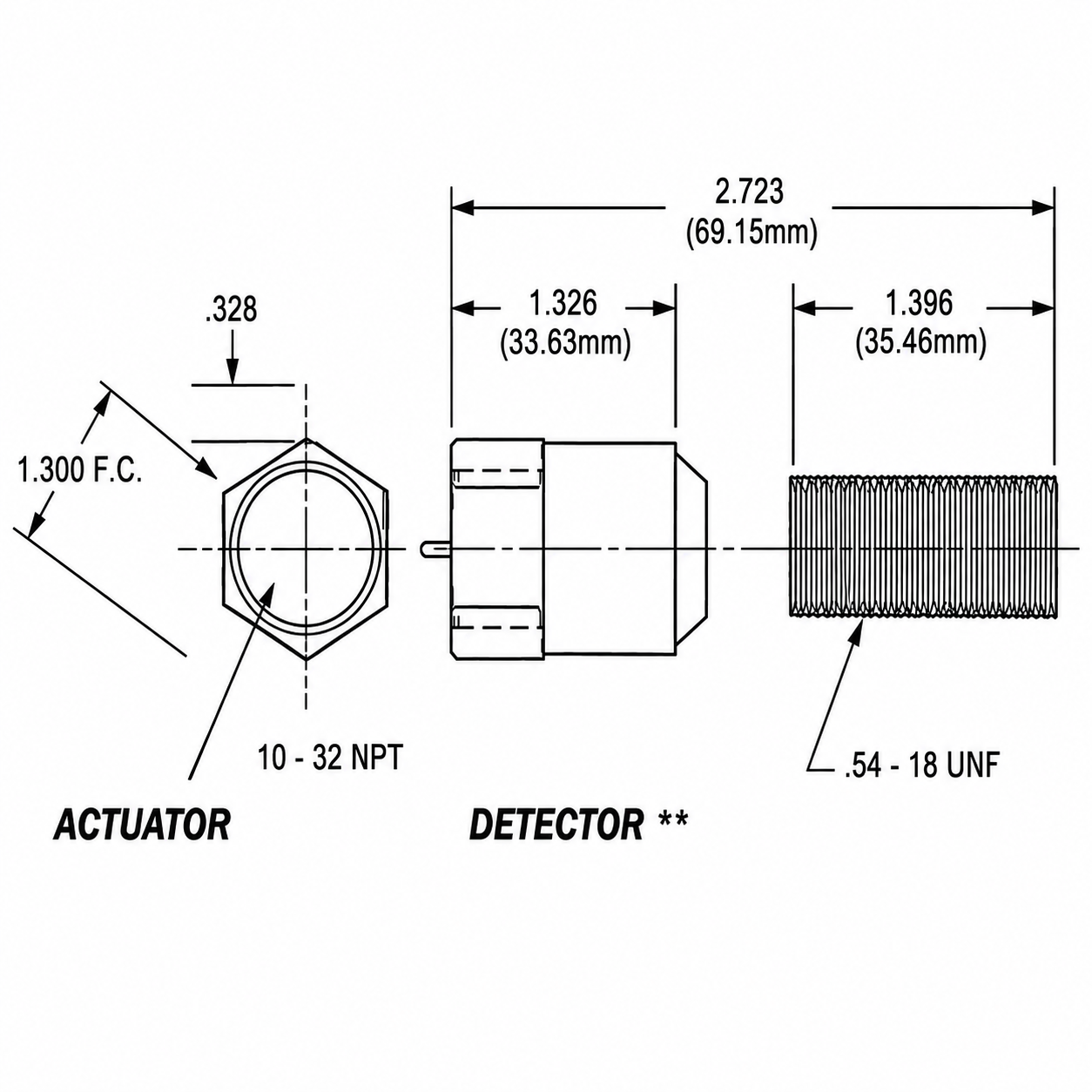

Dwyer DT1160 Magnetic Position Sensor provides fast, reliable position monitoring for linear valves, actuators, cylinders, rotary valves, and dampers in HVAC and industrial control systems.

Its magnetically actuated tungsten SPDT Form C switch responds in 3.0 msec, helping deliver dependable indication with no moving parts to wear or require adjustment.

The hermetically sealed reed switch is epoxy-potted in a durable 316 stainless steel housing and supports AC or DC operation at 3A at 125 VAC or 3A at 30 VDC.  Performance includes 0.50-ohm maximum initial contact resistance, 0.005-inch repeatability, and 0.030-inch hysteresis across a -40 to 163°F operating range.

The standard actuator provides a 0.1-inch sensing distance, while a larger compatible actuator can extend the range to 0.5 inch.  Weatherproof and explosion-proof construction supports applicable hazardous-location installations, and the 1/2"-14 female NPT conduit connection helps simplify installation.

Choose the Dwyer DT1160 for durable, responsive position sensing in compatible industrial and HVAC control applications.


Frequently Asked Questions


• What is the Dwyer DT1160 used for?

The Dwyer DT1160 is used to monitor the position of linear valves, actuators, cylinders, rotary valves, and dampers in HVAC and industrial control applications.

• How fast does the Dwyer DT1160 respond?

The sensor has a 3.0 msec response time for fast position indication.

• What type of switch does the DT1160 use?

It uses a magnetically actuated tungsten SPDT Form C switch.

• Does the Dwyer DT1160 have moving parts?

No. The magnetic sensing design has no moving mechanical parts to wear or require adjustment.

• What are the electrical ratings?

The DT1160 is rated for 3A at 125 VAC or 3A at 30 VDC.

• What is the maximum contact resistance?

Maximum initial contact resistance is 0.50 ohm.

• What is the standard sensing distance?

The standard actuator provides a sensing distance of approximately 0.1 inch.

• Can the sensing range be increased?

Yes. A larger compatible magnetic actuator can extend the sensing distance to approximately 0.5 inch.

• What materials are used in the sensor housing?

The hermetically sealed reed switch is epoxy-potted inside a 316 stainless steel housing.

• What is the operating temperature range?

The DT1160 operates from -40 to 163°F.

• Is the DT1160 suitable for hazardous locations?

Its weatherproof and explosion-proof construction supports applicable hazardous-location installations.

• What conduit connection does it use?

The sensor includes a 1/2"-14 female NPT conduit connection for installation.
