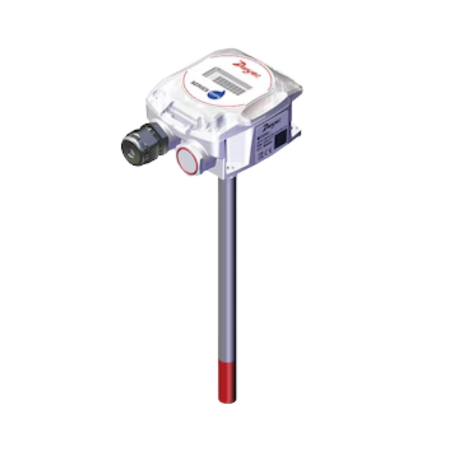

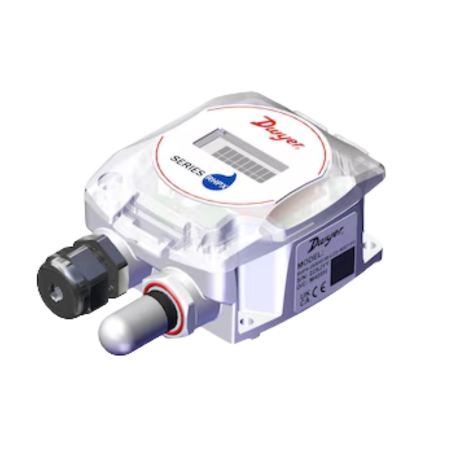

Dwyer RHPX-2SSA0-00 Relative Humidity/Temperature Transmitter 2% RH Accuracy

Name: Dwyer RHPX-2SSA0-00 Relative Humidity/Temperature Transmitter 2% RH Accuracy
Brand: Dwyer
SKU: RHPX-2SSA0-00
Price: 198.87 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Dwyer RHPX-2SSA0-00 Relative Humidity/Temperature Transmitter 2% RH Accuracy

SKU: RHPX-2SSA0-00

UNSPSC: 40100000

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 2 - 4 Weeks Usually Ships 2 - 4 Weeks	$198.87 /ea	Usually Ships 2 - 4 Weeks

Add to Cart

Add to Wishlist

The RHPX-2SSA0-00 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Dwyer RHP-2O11 Rh/Temperature Transmitter Osa Mount 2% Accuracy	RHP-2O11 Brand Dwyer

Add to Cart

Add to Wishlist

The Dwyer RHPX-2SSA0-00 is a relative humidity and temperature transmitter with 2% RH accuracy. It measures humidity from 0 to 100% and temperature from -40 to 140°F (-40 to 60°C). CE Marked for safety and performance compliance.

Features include a 1/2" NPS connection, IP66-rated enclosure, HDPE filter with cover, selectable analog outputs, removable terminal block, and capacitive polymer humidity sensors for enhanced accuracy and durability.

The RHPX-2SSA0-00 is a direct replacement for the RHP-2011 transmitter. It transmits critical data for optimized system performance. Ideal for a wide range of outdoor and controlled environment applications, including:

Data centers
Air economizers
Pool room humidity control
Outdoor humidity and temperature reference points
Building energy management systems
Commercial HVAC systems
Clean rooms
Museums

RH Accuracy	±2%
Humidity Measurement Range	0 to 100%
Temperature Measurement Range	-40 to 140°F (-40 to 60°C)
Enclosure	Small Enclosure
Enclosure Rating	IP66
RH Sensor Configuration	HDPE Filter with Cover
RH and Temperature Output-Active	Selectable Analog Output
Analog Output	4-20 mA or 0-5 V dc, 0-10 V dc at 5 mA
Connection Size	1/2" NPS Thread
Wiring Connection	Removable Terminal Block

Download Product Information:

Dwyer Series RHPX Humidity/Temperature Analog Transmitter User Guide

Dwyer Series RHPX Humidity/Temperature Analog Transmitter Datasheet
