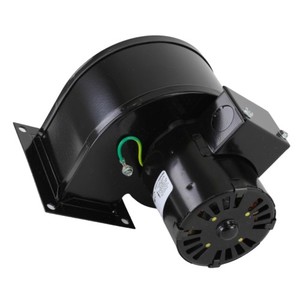

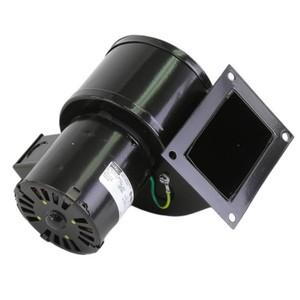

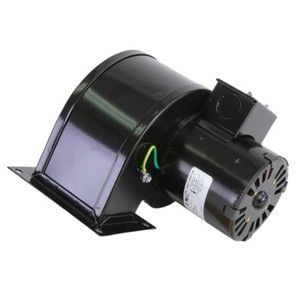

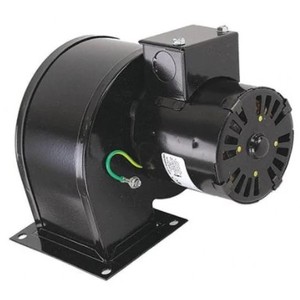

Fasco A166 centrifugal blower accepts power inputs of 115V, 50/60 Hz, 1.4 amps, and has a sleeve bearing for the protection of the motor shaft. At 3,200 revolutions per minute ( RPM), the high-speed high inlet blower has a free air output value of 115 cubic feet per minute (CFM). The blower produces 110 CFM of static pressure (SP) at 0.1 "(inch water gauge), 100 CFM at 0.2", 95 CFM at 0.3.
The motor is protected from overheating and is thermally insulated. This centrifugal blower is recognised by Underwriters Laboratories (UL), and approved for quality assurance by the Canadian Standards Association (CSA), and is suitable for use in heating and ventilation applications such as furnace exhaust vent fans.
Features:
CPM at Static Pressure:
| 0.1: | 115 | 0.1: | 110 |
| 0.2: | 100 | 0.3: | 95 |
| 0.4: | 86 | 0.5: | 82 |
| 0.6: | 60 | 0.7: | 40 |
| 0.8: | 10 |
| Blower Outlet Shape: | Rectangle |
|---|---|
| Motor Type: | Shaded Pole |
| Ambient Temperature: | 40 °C |
| Motor Enclosure: | Open |
| Bearing Type: | Sleeve |
