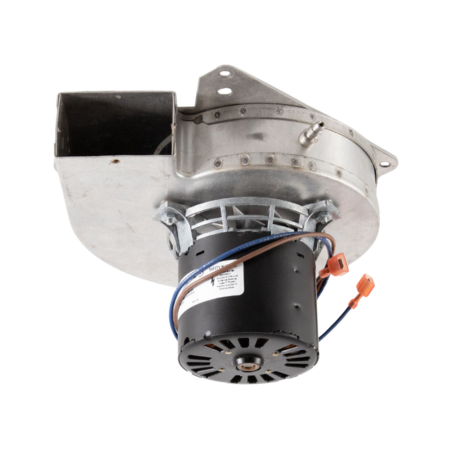

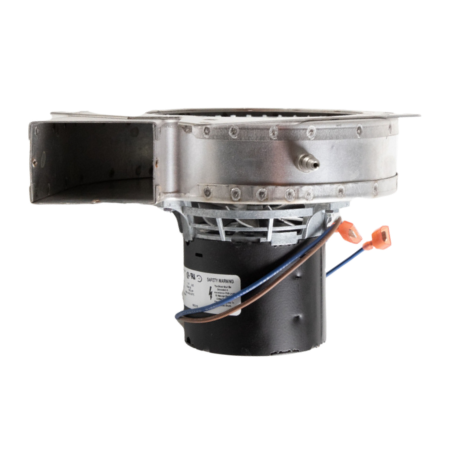

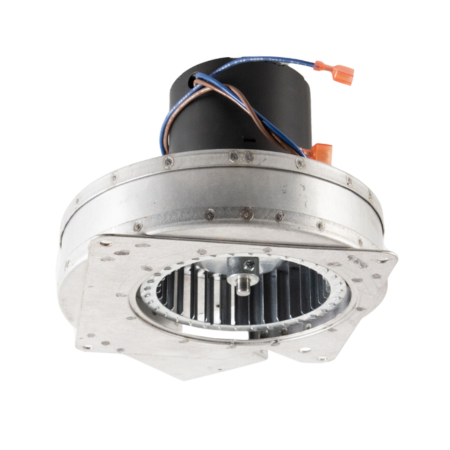

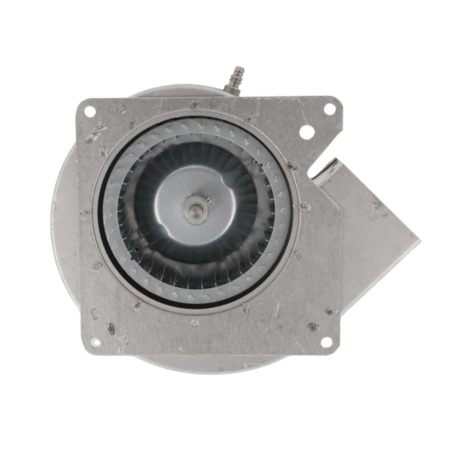

Fasco A282 Draft Inducer Motor 1/60Hp 220V 50 Hz 2600 RPM 1-Speed CCWSE

Fasco A282 Draft Inducer Motor 1/60Hp 220V 50 Hz  2600 RPM 1-Speed CCWSE
Images for general purposes only. Actual may be different than depicted.
Fasco A282 Draft Inducer Motor 1/60Hp 220V 50 Hz  2600 RPM 1-Speed CCWSE Fasco A282 Draft Inducer Motor 1/60Hp 220V 50 Hz Fasco A282 Draft Inducer Motor 1/60Hp 220V 50 Hz 2600 RPM 1-Speed CCWSE Fasco A282 Draft Inducer Motor 1/60Hp 220V 50 Hz 2600 RPM 1-Speed CCWSE Thermally Protected

Fasco A282 Draft Inducer Motor 1/60Hp 220V 50 Hz 2600 RPM 1-Speed CCWSE

SKU: A282
Rating:
Quantity Price Stock
Usually Ships 2 - 4 Weeks
Usually Ships 2 - 4 Weeks
$206.46     /ea
Usually Ships 2 - 4 Weeks
0
$0.00
0
$0.00
0
A282
The Fasco A282 is a draft inducer motor that operates at 1/60Hp, 220V, and 50 Hz power supply.  It is UL Recognized and CSA Listed, ensuring it meets safety standards.

The motor has a 3.3” diameter and 4-1/2” x 1-3/8” wheel dimension.  This device runs 2600 RPM in a counterclockwise shaft end direction at a 1-speed.

The A282 is a direct cross to the Goodman 7021-8448 and B18590505 draft inducer motor.  It is suitable for use in residential and commercial furnaces.
Bearing Type Sleeve Bearing
Rotation Direction Counterclockwise Shaft End
Rotation Speed 2600 RPM
Motor Speed 1-Speed
Horsepower 1/60Hp
Frequency 50 Hz
Voltage 220V
Motor Type Shaded Pole
Amperage 0.45 Amps
Approvals UL Recognized and CSA Listed

Download Product Information:

Fasco Water Heater Draft Inducer Catalog
