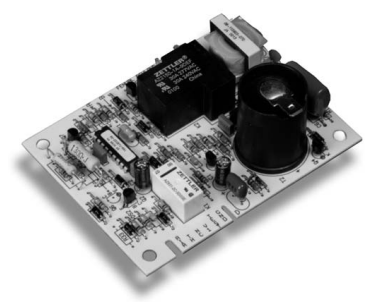

The Fenwal 35-5x and 35-4x Series are 12V DC / 24V DC Microprocessor Based Gas Ignition Controls designed for use with equipment and appliances using DC power for flexibility in global installations/approvals as well as mobile equipment and Recreational Vehicles (RV).

These controls utilize microprocessor technology to safely light and continually monitor and analyze the flame for proper operation of the gas burner. Value added-features include on-board combustion blower relay, pressure switch monitoring, alarm output, non-volatile lockout with manual reset, system LED diagnostics for troubleshooting, automatic one hour reset and flame current test pins.

Features

• Direct Spark Ignition (DSI)
• Hot Surface Ignition (HSI)
• Available with or w/o Combustion Blower
• System Diagnostic LED
• "Quick-Turn" Samples Available

Technical Specifications

• Detect-A-Flame® technology
• Microprocessor Based for Precise Timings
• Wide Range of Timing Options
• Single or Multiple Tries for Ignition
• Remote or Local Flame Sense
• Flame Sense Test Pins

Listing & Approvals

• c(CSA)us ANSI Z21.20
• CAN/CSA C22.2 No. 199-M99
• CE Approved to EN 298
• Australian Gas AG206 and AG210
• UL Component Recognized UL 372
• Software conforms to UL 1998
• RoHS Compliant
