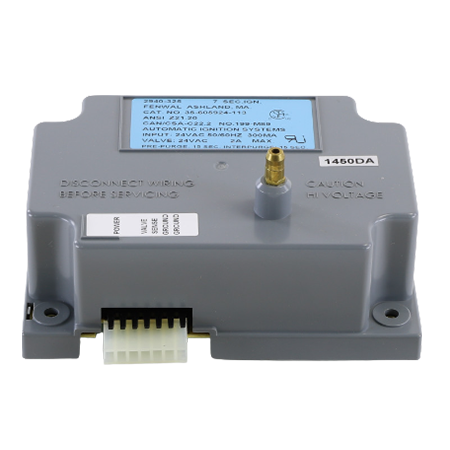

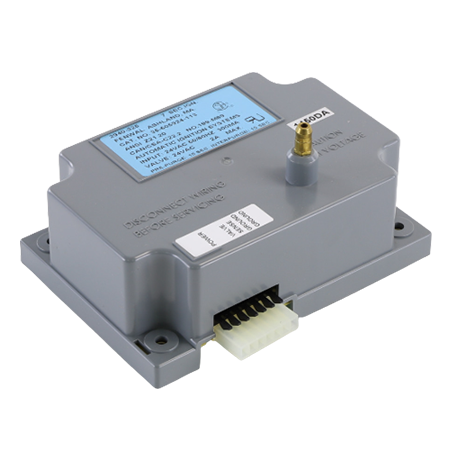

The 35-605924-113 is a microprocessor-based direct spark ignition control module that has a power rating of 24V, 300 mA, and 50/60 Hz frequency. It has a 7-sec trial for ignition and a 15-sec pre-purge. UL-listed, CE-approved, and CSA-certified.
The control module is suitable for gas furnaces, boilers, water heaters, and commercial cooking applications using natural, LP, or manufactured gas. The unit is used to constantly monitor, assess, and manage if the gas burner is working properly.
The 35-605924-113 is easily installed in a horizontal or vertical position with #6 sheet metal screws. It is designed with a fire-retardant plastic enclosure to prevent the spread of fires. The 05-129893-124 7-pin harness remote sense is also available.
| Voltage | 24V |
|---|---|
| Frequency | 50/60 Hz |
| Amperage | 300 mA |
| Trial for Ignition | 7 seconds |
| Pre-Purge | 15 seconds |
| Flame Sensitivity | 0.7μA |
| Flame Failure Response Time | 0.8 seconds |
| Gas Types | Natural, LP, or Manufactured |
| Operating Temperature | -40ºF to 176ºF (-40ºC to 80ºC) |
| Approvals | UL-listed, CE-approved, & CSA-certified |
