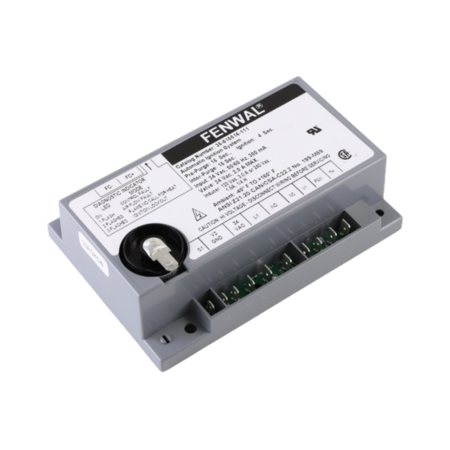

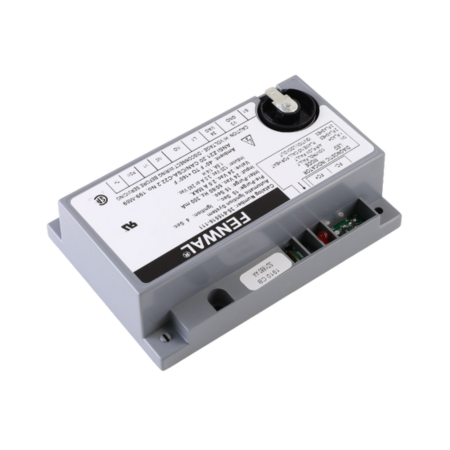

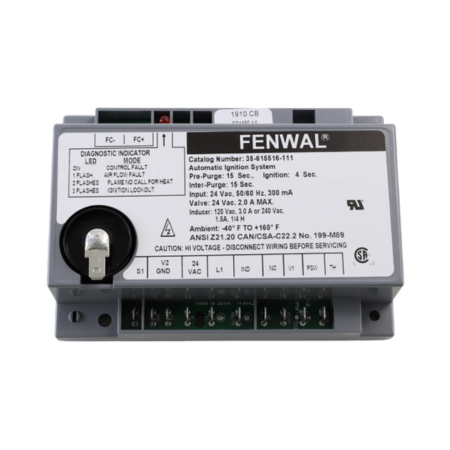

Fenwal 35-615516-111 Microprocessor-Based Direct Spark Ignition Control 24 VAC 50/60 Hz

Fenwal 35-615516-111 Microprocessor-Based Direct Spark Ignition Control 24 VAC 50/60 Hz
Images for general purposes only. Actual may be different than depicted.

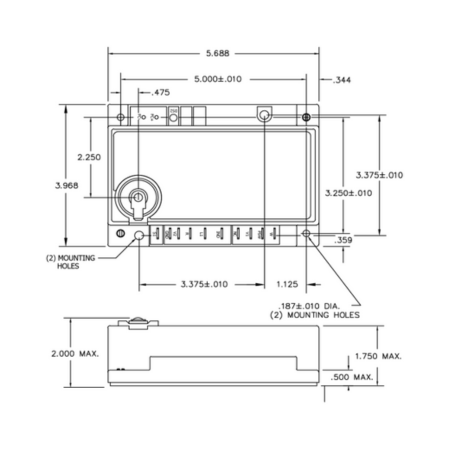

Fenwal 35-615516-111 Microprocessor-Based Direct Spark Ignition Control 24 VAC 50/60 Hz Fenwal 35-615516-111 Microprocessor-Based Direct Spark Ignition Control Fenwal 35-615516-111 Microprocessor-Based Direct Spark Ignition Control 24 VAC 50/60 Hz Fenwal 35-615516-111 Microprocessor-Based Direct Spark Ignition Control 24 VAC 50/60 Hz Dimensions

Fenwal 35-615516-111 Microprocessor-Based Direct Spark Ignition Control 24 VAC 50/60 Hz

SKU: 35-615516-111
UNSPSC: 39121500
Rating: (1)
Quantity Price Stock
20
Usually Ships 2 - 4 Weeks
$229.64     /ea
20
0
$0.00
0
$0.00
0
35-615516-111
The Fenwal 35-615516-111 is a microprocessor-based direct spark ignition (DSI) control operating at 24 VAC, 50/60 Hz, and 300 mA input.  It is UL Recognized and CSA Listed.

Features
  • Automatic Reset
  • Three Ignition Attempts
  • Flame Current Test Points
  • Built-In Diagnostics with LED Indicator
  • Alarm Output (Normally Closed Contact)
  • Inducer Blower Control & Airflow Switch Monitoring
  • Safe Start with DETECT-A-FLAME® Sensing Technology
Performance Specifications
  • Pre-Purge: 15 seconds
  • Inter-Purge: 15 seconds
  • Trial for Ignition (TFI): 4 seconds
  • Flame Sensitivity: Minimum 0.7 µA
  • Flame Failure Response: Maximum 0.8 seconds
  • Flame Detector Self-Check Rate: At least once per second

This control unit integrates a microprocessor for precise monitoring and regulation of gas burner and inducer blower operations, ensuring reliable and safe ignition.

Suitable for use in boilers, commercial cooking equipment, gas furnaces, water heaters, and other gas-fired appliances operating on propane, manufactured gas, or natural gas.
Voltage 24 VAC
Frequency 50/60 Hz
Maximum Current 300 mA
Trial for Ignition Time 4-Seconds TFI
Pre-Purge Time 15-Seconds
Inter-Purge Time 15-Seconds
Ambient Temperature Range -40°F to 160°F
Number of Try 3 Try
Ignition Type Direct Spark Ignition
Gas Type Propane, Natural Gas, Manufactured
