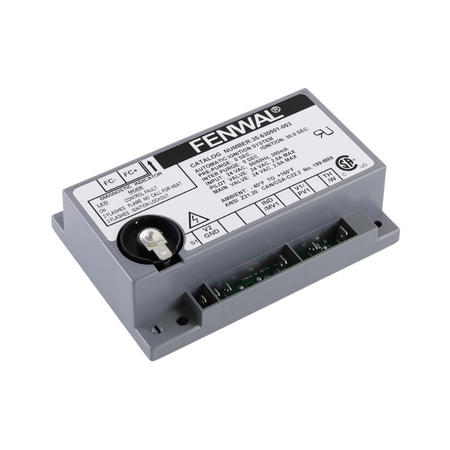

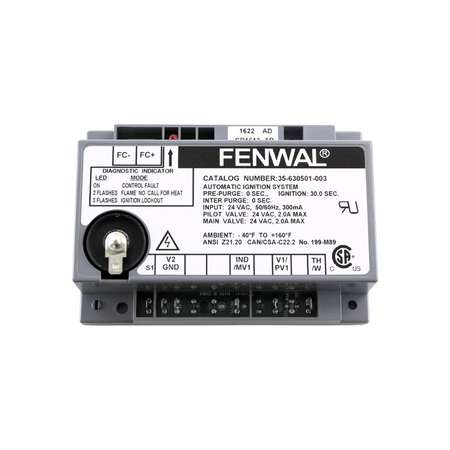

The Fenwal 35-630501-003 is a microprocessor-based intermittent pilot ignition control board that operates with 24 VAC and 50/60 Hz power ratings.  This device has a 0-sec pre-purge timing, 30-sec TFI, and re-ignition after flame loss.  CSA Listed and UL Recognized.

The intermittent pilot (spark-to-pilot) ignition control board provides precise, repeatable timing and operating sequences.  This component features an automatic reset option, local/remote flame sensing, flame current test points, and onboard diagnostics with LED output.

The series 36-63 is commonly used on commercial cooking, unit heaters, water heaters, gas furnaces, and applications requiring intermittent pilot.  Compatible for use with natural, LP, and manufactured gas types.
