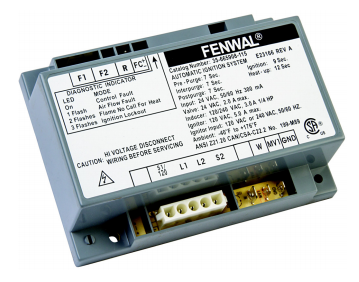

The Fenwal 35-6x Series are 24VAC Microprocessor Based Gas Ignition Controls designed for use in all types of gas-fired equipment and appliances.

These controls utilize microprocessor technology to safely light and continually monitor and analyze the flame for proper operation of the gas burner. Value added-features include on-board combustion blower relay, pressure switch monitoring, alarm output, non-volatile lockout with manual reset, system LED diagnostics for troubleshooting, automatic one hour reset and flame current test pins.

Features

• Direct Spark Ignition (DSI)
• Hot Surface Ignition (HSI) or Proven HSI
• Intermittent Pilot Ignition (IP)
• Available with or w/o Combustion Blower
• System Diagnostic LED
• "Quick-Turn" Samples Availiable

Technical Specifications

• Detect-A-Flame® Technology
• Microprocessor Based for Precise Timings
• Wide Range of Timing Options
• Single or Multiple Tries for Ignition
• Flame Sense Test Pins
• Remote or Local Flame Sense

Listing & Approvals

• c(CSA)us ANSI Z21.20
• CAN/CSA C22.2 No. 199-M89
• CE Approved to EN 298
• Australian Gas AG206 and AG210
• UL Component Recognized: UL 372
• Software conforms to UL 1998
