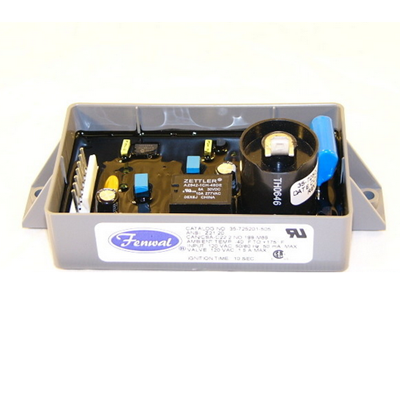

Fenwal 35-72 Series 120 VAC Microprocessor Based Direct Spark Ignition Control

The 35-72 is a 120 VAC direct spark ignition control for controlling a gas valve and igniting LP or natural gas on heating equipment that provides a 120 VAC operating voltage.
The microprocessor circuit design provides precise, repeatable timing sequences for ignition times, purge times (pre- and inter-) along with multiple tries for ignition and flame sensing during pre-purge.

The 35-725201-55 is a 10-Second Single Try for Ignition, with a 5-Second Pre-Purge.

FEATURES

•Safe start with DETECT-A-FLAME® flame sensing technology
•Custom pre-purge and inter-purge timings
•Single or three trials for ignition
•Local or remote flame sensing
•Thermostat/Power off reset
•Open board with standoffs or potted

APPLICATIONS

•Commercial cooking
•Infrared burners
•Construction and agriculture heaters
•Other gas-fired appliances

Agency Certifications

• Recognized under the UL component program, UL 372. Software certified to ANSI/UL 1998. UL File MH8817
• Design Certified to ANSI Z21.20, CAN/CSA C22.2 No. 199-M89
