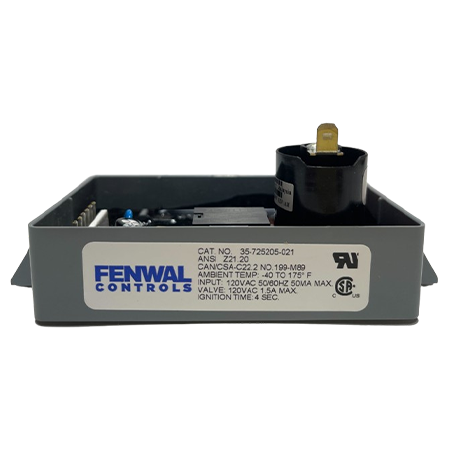

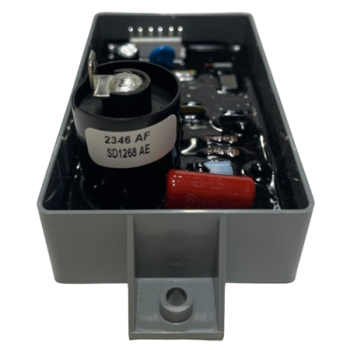

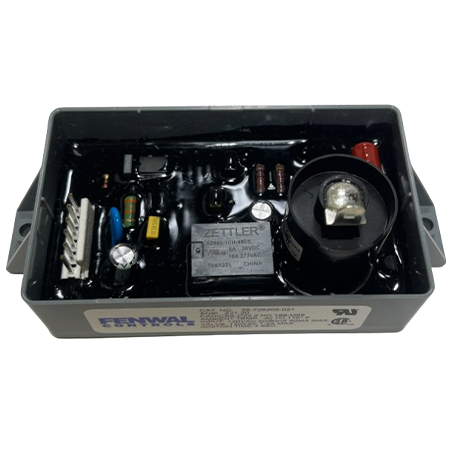

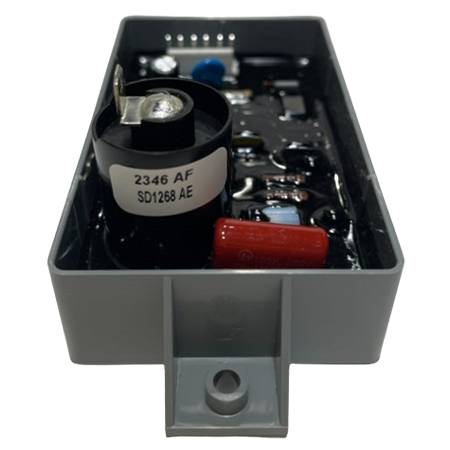

Fenwal 35-725205-021 Microprocessor-Based Direct Spark Ignition Control 120VAC

Name: Fenwal 35-725205-021 Microprocessor-Based Direct Spark Ignition Control 120VAC
Brand: Fenwal
SKU: 35-725205-021
Price: 193.35 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Fenwal 35-725205-021 Microprocessor-Based Direct Spark Ignition Control 120VAC

SKU: 35-725205-021

Tariff HS Code: 8534000095

Brand:

Rating:

Quantity	Price	Stock
10 Usually Ships 1 - 2 Weeks	$193.35 /ea	10

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The 35-725205-021 is a microprocessor-based direct spark ignition control that operates at 120V, 50/60 Hz, and -40 to +175°F (-40 to +80°C) temperature range. It has 3 ignition trials, 4 seconds of trial ignition, and 15 seconds of inter-purge. UL-recognized and CSA-certified.

The microprocessor-based direct spark ignition control is designed to precisely regulate gas valves and ignite natural or LP gas on heating equipment. The unit ensures precise and repeatable timing sequences for ignition such as inter-purge times.

Suitable applications:

Any 120 VAC Gas Burner Application under 400K BTU
Commercial Cooking Equipment
Ceramic Infrared Heaters
Black Body Infrared Heaters
Construction Heater

The 35-725205-021 can be potted mounted with a multi-pin connector that allows protection for washdown and extreme vibration.

Voltage	120V
Frequency	50/60 Hz
Amperage	1.5A
Operating Temperature	-40 to +175°F (-40 to +80°C)
Maximum Flame Failure Response Time	0.8 seconds
Type of Gas	Natural, LP, and manufactured
Trial for Ignition Time	4 seconds
Inter-Purge Time	15 seconds
Flame Failure Response Time	0.8 seconds
Approvals	UL-recognized and CSA-certfied

Download Product Information:

Fenwal 35-725205-021 Microprocessor-Based Direct Spark Ignition Control Technical Datasheet
