Fireye MEC120 Chassis 120 VAC 50/60 Hz with Standard Plug-in Board

Fireye MEC120 Chassis 120 VAC 50/60 Hz with Standard Plug-in Board
Images for general purposes only. Actual may be different than depicted.
Fireye MEC120 Chassis 120 VAC 50/60 Hz with Standard Plug-in Board Fireye MEC120 MicroM Chassis for Flame Safeguard Control

Fireye MEC120 Chassis 120 VAC 50/60 Hz with Standard Plug-in Board

SKU: MEC120
Rating: (1)
Quantity Price Stock
2
Usually Ships 1 Week
$419.14     /ea
2
0
$0.00
0
$0.00
0
MEC120

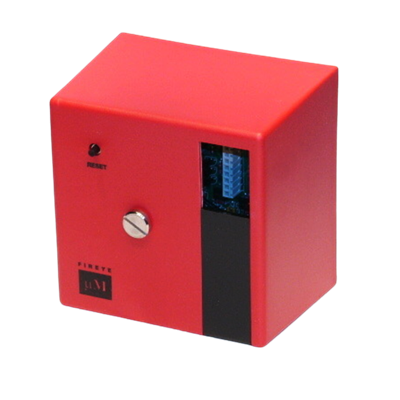

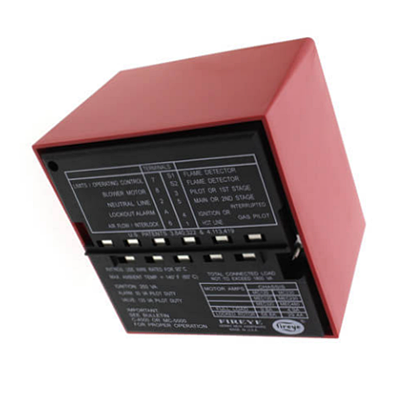

The Fireye MEC120 is a 120VAC compact microprocessor-based chassis with a standard plug-in daughter board.  The chassis features an accessible manual reset button to be used in the event of pilot ignition failure.  This is compatible for use with Series MEP100, MEP200, and MEP500 Programmer Modules.  UL listed and FM approved.

The MEC120 is one of the components needed in a Fireye MicroM Management Flame Safeguard Control System.  The system mainly composes of a programmer module, chassis, wiring base, plug-in amplifier, and flame detector.  The Flame safeguard chassis binds all the components to work as one unit in supplying automatic ignition and monitoring continuous flame in burners.  This type of system is ideal for commercial-size industries that use heating and process equipment firing any type of fuel.

The MicroM MEC120 is applicable on existing M-Series (TFM & UVM) and M-Series II controls as long as an appropriate programmer and amplifier modules are used.  See the Technical Datasheet for the cross-reference listing.

Check out the following available MEC120 Accessories:

AMPLIFIER MODULE PROGRAMMER MODULE
Model Description Model Description
MEIR1 Infrared, 0.8-second MEP100 Relight Operation, 10-second PTFI
MEIR4 Infrared, 3-second MEP230 Selectable Purge Time (7,30,60,90-second), 10-second PTFI Timing,
Recycle/Non-recycle, Post-Purge, Prove Air Open at Start
MERT1 Flame Rod/Photocell, 0.8-second FFRT MEP230H Same with MEP230 with 8-second Pilot Stabilization
MERT4 Flame Rod/Photocell, 3-second FFRT
MEUV1 UV, 0.8-second FFRT WIRING BASE FUSE
MEUV4 UV, 3-second FFRT 61-3060 Closed Wiring Base 23-197 Fuse 10A (250V)
MEUVS4 UV Self-Check, 3-second FFRT 61-5042 Open Wiring Base



Operating Temperature -40°F (-40°C) to 140°F (60°C)
Voltage 120 VAC
Frequency 50/60 Hz
Power Consumption 12 VA (Operating)
Approvals UL Listed and FM Approved
