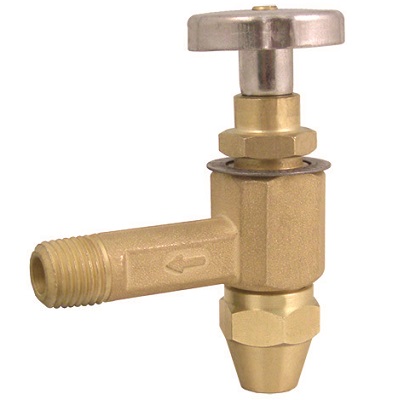

Fusible Burner (Angle) Valves
Fusible Fire Safety Valves are designed to reduce fire damage by shutting off the flow of oil from the oil tank in the event of a fire. They are required by code in residential oil heating installations in conformance with NFPA 31.
All valves are embossed with an arrow indicating the direction of oil flow. The seal stem uses a double seal washer/o-ring system with high grade Viton® equivalent materials suitable for No. 2 fuel oil and Kerosene. Maximum pressure rating is 10PSI.
Used at Burner as secondary protection. Heavy duty high quality Brass design 3/8" and 1/2" Flare tubing fittings and 1/4" NPT to burner. Three lengths available to handle most installation situations.
