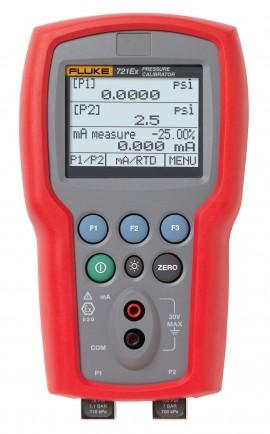

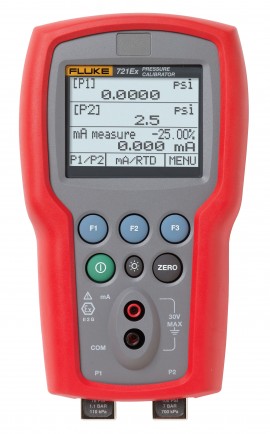

Ideal for gas flow calibration (custody transfer) applications allowing you to take simultaneous static and differential pressure measurements with a single tool. Intrinsically Safe - IECEx and Atex Ex ia IIB T3 Gb (Zone 1). It features a 36 psig/100 psig pressure range.

Features

• Can be configured by selecting either a 16 psi (1.1 bar) or 36 psi (2.48 bar) low pressure sensor then add any of 7 high pressure ranges including 100, 300, 500, 1000, 1500, 3000 or 5000 psi (6.9, 20, 24.5, 69, 103.4, 200, 345 bar)
• Two isolated, stainless steel, pressure sensors with 0.025% accuracy
• Switch test on both pressure inputs
• Pressure displayed in the user\'s choice of 19 engineering units: psi, bar, mbar, kPa, kgcm2, cmH2O @ 4°C, cmH2O @ 20°C, mH2O @ 4°C, mH2O @ 20°C, inH2O @ 4°C, inH2O @ 20°C, inH2O @ 60°F, mmHg @ 0°C, inHg @ 0°C, ftH2O @ 4°C, ftH2O @ 20°C, ftH2O @ 60°F
• Precision temperature measurement with optional RTD probe
• Measures 4 to 20 mA signals
• Large backlit graphic display shows up to three inputs simultaneously
• Store five instrument setups for recall and use
