Flynn 409503 Flame Relay Ignition Module 24 VAC

Name: Flynn 409503 Flame Relay Ignition Module 24 VAC
Brand: Flynn Burner
SKU: 409503
Price: 222.91 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Flynn 409503 Flame Relay Ignition Module 24 VAC

SKU: 409503

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 2 - 4 Weeks Usually Ships 2 - 4 Weeks	$222.91 /ea	Usually Ships 2 - 4 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The Flynn 409503 is a compact flame relay ignition module made with plastic. It operates at a 24 VAC electrical rating. CSA listed.

The module features separate electrodes and sensors that provide ignition and flame monitoring within a temperature range of -40°F to 185°F.

This device offers a 10-second trial for ignition, microprocessor-based ignition control, and LED indicators: green for "Flame On" and red for "Flame Fail".

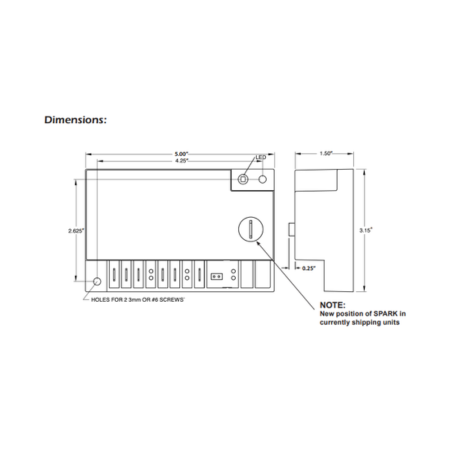

The 409503 is a direct cross for the 407594 old model but is 1/4 inch taller. It is suitable for burners with capacities less than 400,000 BTU/hr.

Note: The new models will not fit inside an existing Flynn Flame Manager due to rearranged terminal and spark positions. However, the functionality remains the same as the older versions.

Capacity	less than 400,000 btu/hr
Approval	CSA Listed
Application	Burners
Housing Material	Plastic
Operating Temperature Range	-40 to 185°F
Trial for Ignition	10 Seconds
Voltage	24 VAC
Ignition Sensing Configuration	Separate Electrode and Sensor
Product Type	Flame Relay Ignition Module

Download Product Information:

Flynn Flame Relay Ignition Module Technical Datasheet
