Flynn 409505 Flame Relay Ignition Module 230 VAC

Name: Flynn 409505 Flame Relay Ignition Module 230 VAC
Brand: Flynn Burner
SKU: 409505
Price: 205.85 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Flynn 409505 Flame Relay Ignition Module 230 VAC

SKU: 409505

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 2 - 4 Weeks Usually Ships 2 - 4 Weeks	$205.85 /ea	Usually Ships 2 - 4 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The Flynn 409505 is a compact flame relay ignition module made with plastic and operates at a 230 VAC electrical rating. CSA listed.

The module features separate electrodes and sensors that provide ignition and flame monitoring within a temperature range of -40°F to 185°F.

This device offers a 10-second trial for ignition, microprocessor-based ignition control, and LED indicators: green for "Flame On" and red for "Flame Fail".

The 409505 is a direct cross for the 407592 old model but is 1/4 inch taller. It is suitable for burners with capacities less than 400,000 BTU/hr.

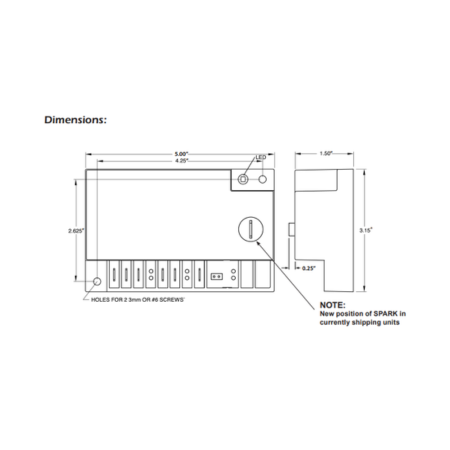

Note: The new models will not fit inside an existing Flynn Flame Manager due to rearranged terminal and spark positions. However, the functionality remains the same as the older versions.

Voltage	230 VAC
Trial for Ignition	10 Seconds
Operating Temperature Range	-40 to 185°F
Housing Material	Plastic
Application	Burners
Approval	CSA Listed
Capacity	less than 400,000 btu/hr
Ignition Sensing Configuration	Separate Electrode and Sensor
Product Type	Flame Relay Ignition Module

Download Product Information:

Flynn Flame Relay Ignition Module Technical Datasheet
