VA Rating | 100 |
---|---|
Frequency | 50/60 Hz |
Mounting | Foot & Single Threaded Hub |
Over Current Protection | Circuit Breaker |
Dimensions | 3.000Ë x 2.500Ë x 4.000Ë (w/ .500Ë NPT Hub) |
Wire Length | 9.5Ë Typical w/ .5Ë Strip |
Operating Temperature | -30 to 140° F |
MTBF | 100,000 Hours @ 77° F |
Construction | Split-Bobbin |
Approvals | Class II UL5085-3 Listed, C-UL, CE, RoHS |
Download Product Information:

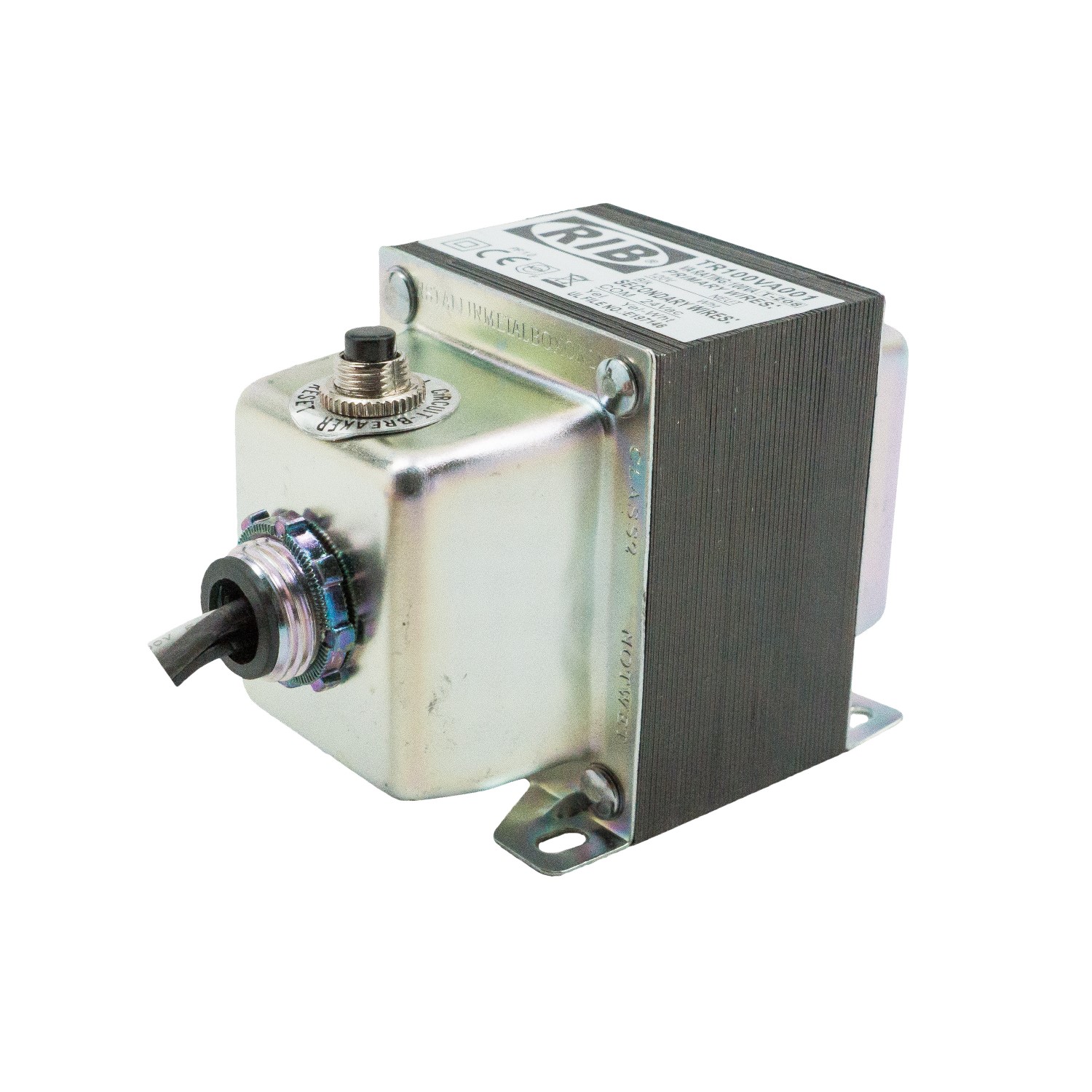

Functional Devices TR100VA001 Transformer Specification Sheet
