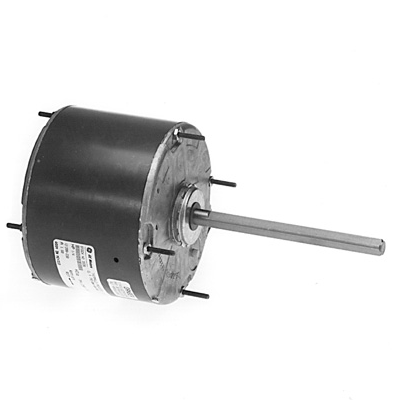

Genteq 3730 Condenser Fan Motor 1/2Hp 208/230V 1075RPM

Genteq 3730 Condenser Fan Motor 1/2Hp 208/230V 1075RPM
Images for general purposes only. Actual may be different than depicted.
Genteq 3730 Condenser Fan Motor 1/2Hp 208/230V 1075RPM

Genteq 3730 Condenser Fan Motor 1/2Hp 208/230V 1075RPM

SKU: 3730
Rating:
Quantity Price Stock
Usually Ships 1 Week
Usually Ships 1 Week
$181.97     /ea
Usually Ships 1 Week
0
$0.00
0
$0.00
0
3730
Genteq 3730 Condenser Fan Motor 1/2Hp 208/230V 1075RPM

It is designed for condenser fan and heat pump units requiring vertical shaft up or vertical shaft down positioning with "belly band" or extended clamp screw mounting.

Features:

  • Automatic reset overload protection
  • Extended thru-bolts, 3/4" long on SE end and 1/2" on OSE end
  • Mounting holes in shell for capacitor bracket
  • 1/2" diameter shaft 6" long with 2 full flats at 90°
  • Electrically reversible
  • Permanent split capacitor
  • Standard efficiency designs
  • Sleeve or ball bearings
  • Designed for 370 Volt capacitor, not included
  • Water slinger on shaft
  • 26 inch motor leads
  • Single phase
  • 48 Frame
Rotation CCW/CW
Volts 208-230
RPM 1075
H.P 1/2
Amps 3.5
