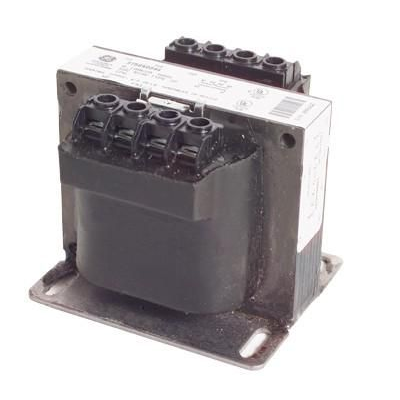

Genteq 9T58K0084 Core and Coil Transformer

Name: Genteq 9T58K0084 Core and Coil Transformer
Brand: Genteq (Regal Beloit)
SKU: 9T58K0084
Price: 191.38 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Genteq 9T58K0084 Core and Coil Transformer

SKU: 9T58K0084

Brand:

Rating:

Quantity	Price	Stock
1 Usually Ships 1 Week	$191.38 /ea	1

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Genteq 9T58K0084 Core and Coil Transformer Primary 208/277/380V Secondary 115V/95V 464VA

Type IP transformers are core and coil units designed for machine tool, industrial control, panel board and general-purpose applications. These designs are now welded core and encapsulated to provide the highest quality electrical performance. The transformer coil is completely surrounded by epoxy, making the unit impervious to external elements. The lamination core is welded to provide superior quiet performance.

Features:

Fully encapsulated coil is impervious to moisture
Pressure plate terminals ensure secure connections
Terminal board is anchored in the epoxy for greater reliability
Wide variety of fusing options
Rugged, high impact plastic terminal board
Full head No 8 brass screws assure quick, easy terminations with maximum connection integrity
Copper windings
Flexible design allows input or output voltage to match any application
Available fuse clips offer simple, low cost fusing with terminal block models and minimum space are important
Copper coil
55 deg C temperature rise
105 deg C temperature class
K1 K factor
Terminal board connection

Primary Voltage	208/277/380 V
Secondary Voltage	95/115 V
Frequency Rating	50/60 Hz
Temperature Rise	55 DEG C
Temperature Rating	40 deg C (Ambient)

Download Product Information:

Genteq 9T58K0084 Core and Coil Transformer Specification Sheet
