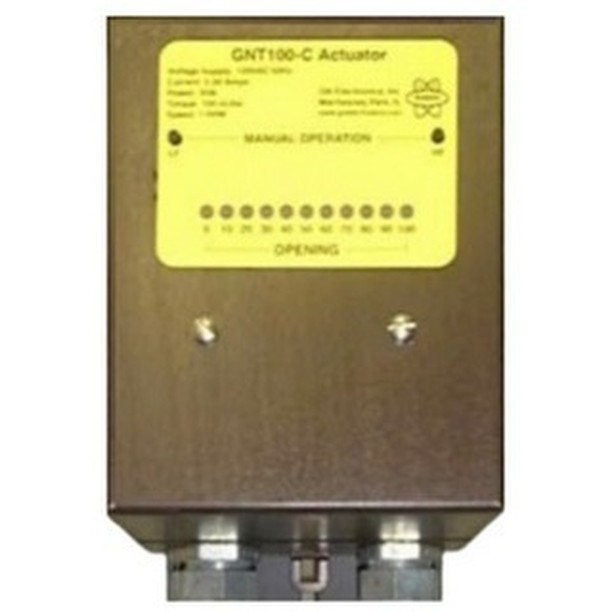

The GN Electronics GNT-100-CO is an all-metal actuator with NEMA 12 enclosure that operates at 50/60Hz and 30W power rating. This has 100 in-lbs. of torque with a shaft that rotates 0 to 90° clockwise in 15 seconds. It accepts 4 to 20 mA, 0 to 10V, 240VAC, or 120VAC inputs.
On top of the actuator, there are two push buttons that can be used for manual drive. Also, it includes an internal switch to reverse drive direction and a position switch to adjust high fire & low fire. The torque position can be easily monitored using the actuators' indicator lights.
The GNT-100-CO features auto mode control and manual mode for burner setup. In mounting the actuator, it can either be a direct mount or a crank arm connected to a valve or damper linkage system.
| Power Supply | 120VAC (+10%, -15%), 50/60 Hz |
|---|---|
| Power Comsumption | 30 Watts |
| Operating Temperature | -20 to +60°C (0 to 140°F) |
| Humidity | 5 to 95% RH non-condensing |
| Terminal Connection | 22 to 14 AWG |
| Enclosure | NEMA 12 |
| Dimension | 5 x 4 x 4 1/2 inches |
| Shaft Rotation | 0 to 90° |
| Speed Rotation | 15 seconds for 90°@ 60Hz |
| Switch Contact Current Rating | 8 A |
