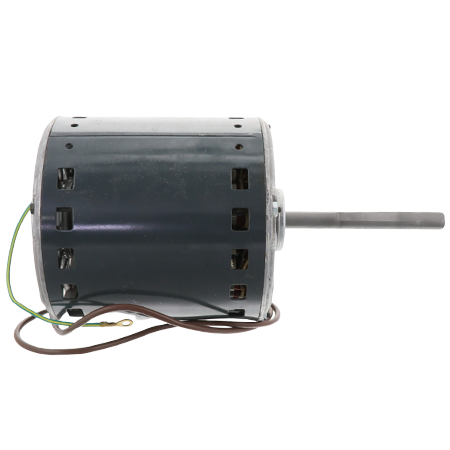

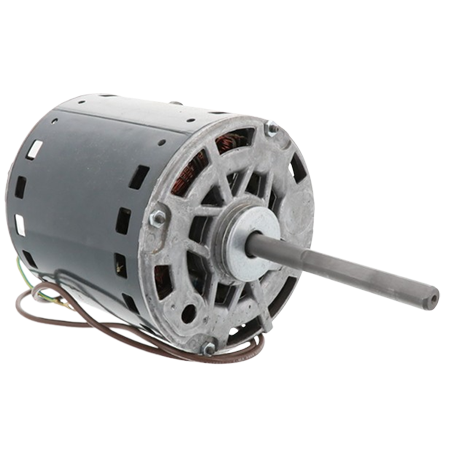

Goodman-Amana 20028601S Evaporator Motor 208-230V 1-Phase 3/4HP Counter-Clockwise 1100RPM

Name: Goodman-Amana 20028601S Evaporator Motor 208-230V 1-Phase 3/4HP Counter-Clockwise 1100RPM
Brand: Goodman-Amana
SKU: 20028601S
Price: 402.04 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Goodman-Amana 20028601S Evaporator Motor 208-230V 1-Phase 3/4HP Counter-Clockwise 1100RPM

SKU: 20028601S

Brand:

Rating:

Quantity	Price	Stock
2 Usually Ships 1 - 2 Weeks	$402.04 /ea	2

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The 20028601S is a single-phase evaporator motor that has a power rating of 3/4HP and 208/230V. The motor rotates in a counterclockwise direction at a speed of up to 1100 RPM. UL-recognized, RoHS-compliant, and CSA-certified.

The thermally protected motor is suitable for central air conditioners, packaged units, and heat pump applications. The unit can be set with up to 4 fan speed settings.

The 20028601S replaces part number 20028601.

Check out the compatible models:

APG10480901A
APG10480903A
APG10481151A
APG10600901A
APG10600903A
APG10601401A
APG10601403A
APG12480901A
APG12481151A
APG12600901A
APG12601151A
GPG10480901A
GPG10480903A
GPG10481151A
GPG10600901A
GPG10600903A
GPG10601401A
GPG10601403A
GPG12480901A
GPG12481151A

GPG12600901A
GPG12601151A
PCA42C02E/P1234804C
PCA42C02E/P1234810C
PCA42C02F/P1234814C
PCA48C02E/P1234805C
PCA48C02F/P1234815C
PCA60C02E/P1234806C
PCA60C02F/P1234816C
PGA48C0902F/P1236408C
PGA48C1152F/P1236409C
PGA60C0902F/P1236410C
PGA60C1152F/P1236411C
PGB42C1152D/P1217201C
PGB42C1152D/P1220201C
PGB42C1152E/P1231801C
PGB42C1152E/P1236401C
PGB48C0902D/P1217202C
PGB48C0902D/P1220202C
PGB48C0902E/P1231802C

PGB48C0902E/P1236402C
PGB48C1152D/P1217203C
PGB48C1152D/P1220203C
PGB48C1152E/P1231803C
PGB48C1152E/P1236403C
PGB48C1402D/P1217204C
PGB48C1402D/P1220204C
PGB48C1402E/P1231804C
PGB48C1402E/P1236404C
PGB60C0902D/P1217205C
PGB60C0902D/P1220205C
PGB60C0902E/P1231805C
PGB60C0902E/P1236405C
PGB60C1152D/P1217206C
PGB60C1152D/P1220206C
PGB60C1152E/P1231806C
PGB60C1152E/P1236406C
PGB60C1402D/P1217207C
PGB60C1402D/P1220207C
PGB60C1402E/P1231807C

PGB60C1402E/P1236407C
PHB42C02E/P1220104C
PHB42C02E/P1235604C
PHB42C02E1/P1239210C
PHB42C02E1/P1239217C
PHB42C02F1/P1239223C
PHB48C02E/P1220105C
PHB48C02E/P1235605C
PHB48C02E1/P1239211C
PHB48C02E1/P1239218C
PHB48C02F1/P1239224C
PHB60C02E/P1235606C
XPG1048115A/P1243901C
XPG1060115A/P1243902C
XPH1142A/P1243504C
XPH1142A/P1243510C
XPH1148A/P1243505C
XPH1148A/P1243511C
XPH1160A/P1243506C

Horsepower	3/4HP
Voltage	208 to 230V
Rotation Speed	1100 RPM
Number of Phases	Single-Phase
Rotation	Counterclockwise
Approvals	UL-recognized, RoHS-compliant, and CSA-certified

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

Is this a PSC motor or ECM?

Asked on August 02, 2019 by sam from fresno ca

1 Answers

Have an answer? Click Here

Unfortunately there is no literature on this motor. The motor has both a harness outlet plug and two lead wires. This may mean that whatever starter control is required it is remote, so it could be a PSC for a capacitor, or it could be an ECM module that is remote. Without any documentation on it however it is impossible to tell. It is also possible that the motor is designed for multiple applications, so if whatever you are using this motor on probably has either a capacitor or control module attached that would plug into or connect to this motor.

Replied on August 02, 2019 by Ron from Industrial Stores
