Goodman-Amana RF000129 Ignition Control Board

Clearance
Goodman-Amana RF000129 Ignition Control Board
Images for general purposes only. Actual may be different than depicted.

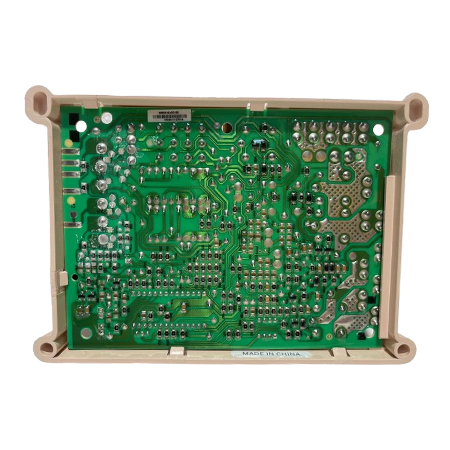

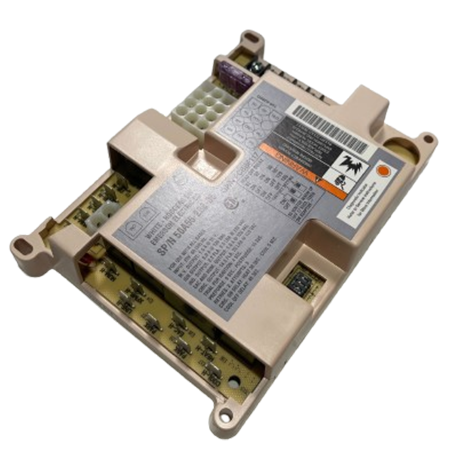

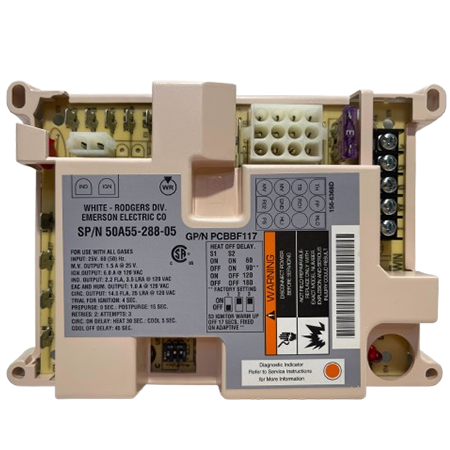

Goodman-Amana RF000129 Ignition Control Board Goodman-Amana RF000129 Ignition Control Board for Furnace Goodman-Amana RF000129 Ignition Control Board Natural and LP Gas

Goodman-Amana RF000129 Ignition Control Board

SKU: RF000129
Rating:
Quantity Price Stock
1
Usually Ships 1 - 2 Weeks
$160.41    $120.31     /ea
1
1
1
$120.31
2
$160.41
0
RF000129
The RF000129 (50A55-288-05) is an ignition control board that operates at 25V, 50/60 Hz, and 6A at 120V ignition output. It features no pre-purge time, a 4-second ignition trial, and a 15-second post-purge.  CSA-certified.

The ignition control board is designed for furnace applications using natural and LP gases.  It regulates the ignition timing to ensure proper furnace operation, with a range of outputs, including 1.5 Amps at 25V for M.V., 6.0 Amps at 120 VAC for ignition, and 14.5 Amps for circulation.

The RF000129 replaces the following part numbers:

10207709
10207701
PCBBF117S
PCBBF117
PCB00117
20394001
11184504
11184503
11184502
11184501
10207719
10207718
10207715
10207714
10207710
10207706
10207704
10207702
Input Voltage 25V
Frequency 50/60 Hz
Gas Type Natural and LP Gas
M.V. Output 1.5 Amps at 25V
Ignition Output 6.0 Amps at 120 VAC
Inducer Output 2.2 Full Load Amperage; 3.5 Locked Rotor Amperage at 120 VAC
Ignition Trial Time 4 Seconds
Postpurge Time 15 Seconds
Cool Off Delay Time 45 Seconds
Circulation on Delay Time Heat 30 Seconds; Cool 5 Seconds
