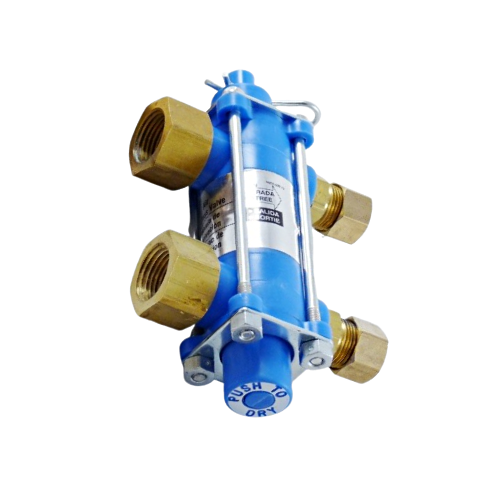

The 1701-3 is a bleed-type air/liquid bypass valve that consists of a 3/8" dryer side tube connection and a 3/8" NPT service side connection. The unit has a maximum operating pressure of up to 200 psig and a maximum operating temperature of 120°F (49°C).
The bypass valve is suitable for refrigerated air dryer applications. It is also ideal for gases and liquids compatible with nylon Buna N and brass. The unit is used to perform repairs within system components without shutting off and keep the system running.
The 1701-3 features a compact construction to minimize space and costly installations with all parts enclosed in one integral unit. Quick and easy to mount with metal and plastic design to make fitting fully rotatable to prevent leakage
| Maximum Working Pressure | 200 psig (14 bar) |
|---|---|
| Maximum Operating Temperature | 120°F (49°C) |
| Dryer Side Connection | 3/8" Tube |
| Service Side Connection | 3/8" NPT |
| Maximum Flow Rate | 35 scfm |
| Minimum Flow Rate | 5 scfm |
| Fluid Type | Air / Liquid |
| Body Material | Metal, Plastic |
| Seal Material | Rubber |
