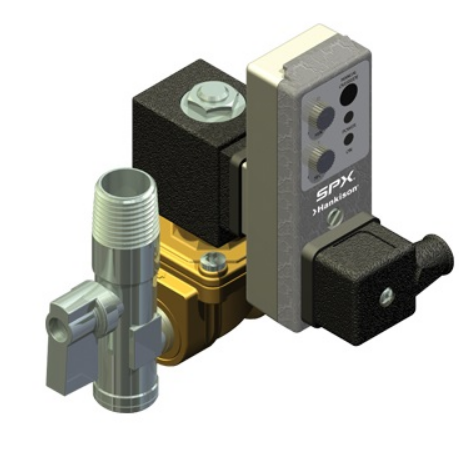

Hankison 530 Series Time Electric Drains

Hankison’s Timed Electric condensate drains are designed to ensure that manufacturing processes and products do not become contaminated. Every drain is designed to ensure liquid oil and water condensate is discharged from the compressed air stream. System downtime is reduced by eliminating the need to manually drain compressed air lines and equipment. These drains incorporate a solenoid valve and an electric timer. The timer has two settings: time between valve openings (in minutes) and amount of time the valve stays open (in seconds). By matching these two settings to the amount of condensate a system produces the condensate can be removed from the compressed air system effectively. The 530 Series electric timed drains provide versatile installation options for your application.

Features :

• Resistant to large particles 1/2” maximum diameter
• Internal pilot operated diaphragm solenoid valve
• High pressure model available: maximum working pressure 1500 psig (105 barg)
• Complete with strainer (not available on the high pressure drain) Model 532-03 and 532-04
• Maximum working pressure: »» 300 psig, (21 barg)
• Discharge port size: »» 3/8” in ( 9.5 mm) for 03 model »» 1/2” in (12.7 mm) for 04 model
• Includes combination isolation valve and inlet strainer
