Hankison HF3-28-8-DGL Maximum Efficiency Oil Removal Filter 1" with Drain, Gauge & Level

Hankison HF3-28-8-DGL Maximum Efficiency Oil Removal Filter 1" with Drain, Gauge & Level
Images for general purposes only. Actual may be different than depicted.
Hankison HF3-28-8-DGL Maximum Efficiency Oil Removal Filter 1" with Drain, Gauge & Level Hankison HF3-28-8-DGL Maximum Efficiency Oil Removal Filter 0.01 micron Hankison HF3-28-8-DGL Maximum Efficiency Oil Removal Filter 170 SCFM

Hankison HF3-28-8-DGL Maximum Efficiency Oil Removal Filter 1" with Drain, Gauge & Level

SKU: HF3-28-8DGL
Rating:
Quantity Price Stock
Usually Ships 2 - 3 Weeks
Usually Ships 2 - 3 Weeks
$1,275.20     /ea
Usually Ships 2 - 3 Weeks
0
$0.00
0
$0.00
0
HF3-28-8DGL

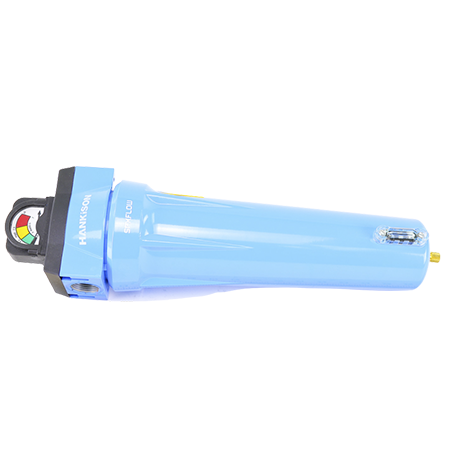

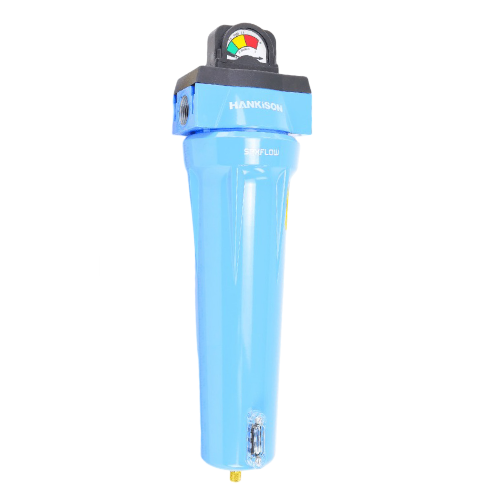

The HF3-28-8-DGL is a maximum efficiency oil removal filter that consists of an internal automatic drain, differential pressure gauge, and liquid level indicator.  It has a 1" NPT connection size and 170 SCFM flow capacity with up to 300 psi operating pressure.

The maximum efficiency oil removal filter blocks contaminants such as dust, dirt, rust, condensed water, oil, and hydrocarbon vapors.  The unit features a 0.01 filtration rating and removes up to 0.0008 PPM of oil.  The E3-28 filter replacement part and 234331-01 mounting bracket accessory are also available.

The HF3-28-8-DGL is quick and easy to install.  It is designed with chromate and epoxy powder-painted housing that provides corrosion resistance & durability.
Flow Capacity at 100 psi 170 SCFM
Maximum Operating Pressure 300 psi (21 barg)
Options Internal Automatic Drain, Differential Pressure Gauge, Liquid Level Indicator
Connection Size 1"
Filtration Rating 0.01 micron
Temperature Range 35 to 150°F (2 to 66°C)
Oil Removal Rating 0.0008 ppm
Housing Material Aluminum, Zinc, and Steel

Q & A: Ask the Questions, share answers

Do you have questions about this product?


Q:
Will this also remove water?
Asked on August 11, 2022 by Mark from WI
1 Answers

Have an answer? Click Here

A:
This Oil removal filter comes with a Grade 3 filter. The Grade 3 Maximum Efficiency filter is "designed for coalescing ultra-fine oil aerosols".  According to the Technical Datasheet, Grades 5 and 7 can be used for water removal. Please see the Hankinson HF5-28-8-DGL and the HF7-28-8-DGL for grades 5 and 7 filter options.   We also strongly recommend speaking with a local licensed professional or technician that is familiar with your application, prior to making your product selection.
Replied on August 11, 2022 by Ori from Industrial Stores
