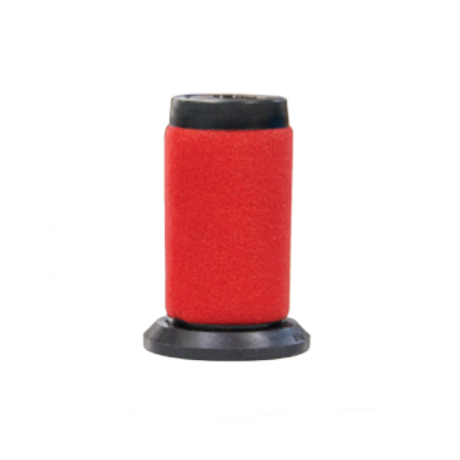

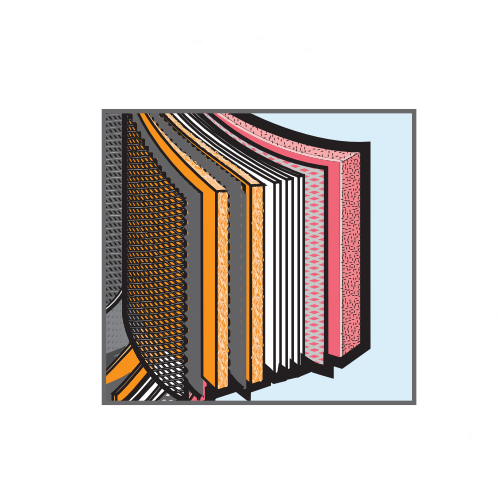

The Hankison HF5-24-8-DGL is a High-Efficiency Oil Removal Filter. This filter can remove up to 0.01-micron solid particulate and designed for coalescing fine water and oil aerosols. The first stage filter serves as the pre-filter consisting of multiple layers of fiber media and the screen removes larger particles. For the second stage, the multiple layers of bonded, blended fiber media conduct fine coalescence.

Compressed Air Filters remove dust, dirt, rust, and pipe scale, compressor lubricants (mineral or synthetic), condensed water droplets, acidic condensates and oil, and hydrocarbon vapors.  Hankison Filter prevents entry of these contaminants that will contaminate processes and damage your equipment which can lead up to costly maintenance.  The Hankison Filter provides the quality of air required by your application; whether it’s plant air, instrument air, or medical air–helping to ensure consistent output quality while minimizing operating costs.


Hankison offers seven-element grades to choose from:

• Grade 11 - Moisture Separator
• Grade 9 - Separator/Filter
• Grade 7 - General Purpose Air Line Filter
• Grade 6 - Dry Particulate Air Line Filter
• Grade 5 - High-Efficiency Oil Removal Filter
• Grade 3 - Ultra High-Efficiency Oil Removal Filter
• Grade 1 - Oil Vapor Removal Filter

Features:
