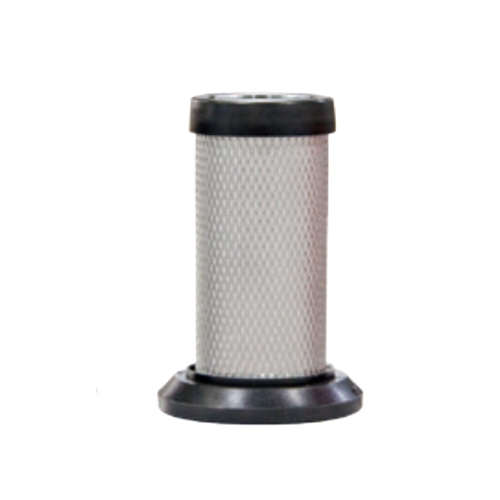

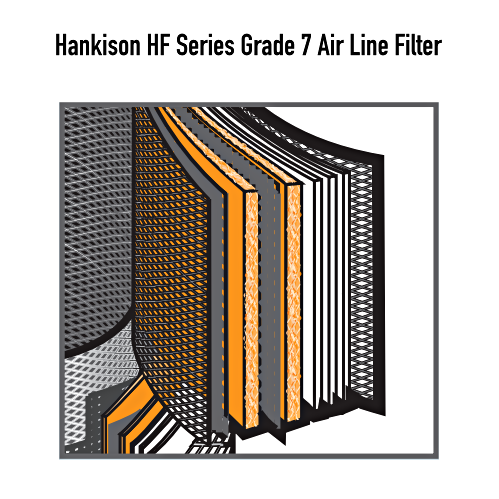

Hankison HF7-16-4-DPL Grade 7 Air Line Filter used for the air system to remove contaminants.  It can filter up to 1.0-micron solid particulate, provides removal of liquid water and oil.  The filter process starts with capturing larger particles with alternate layers of fiber media and screen.  After, it coalesces aerosols and captures solid particles with multiple layers of epoxy-bonded, blended fiber media.


Hankison HF Series Compressed Air Filters helps your air system to have a better air quality.  The filters remove solid particles like dust, dirt, rust and pipe scale, compressor lubricants (mineral or synthetic), condensed water droplets, and acidic condensates and oil and hydrocarbon vapors.  These contaminants are abrasive that can cause air system deterioration.  Having the Hankison HF series will minimize your maintenance cost from your air system.


The Hankison offers seven-element grades you can choose from:



Hankison Air Filter Element Grades
Grade 1	Oil Vapor Removal Filter
Grade 3	Ultra High Efficiency Oil Removal Filter
Grade 5	High Efficiency Oil Removal Filter
Grade 6	Dry Particulate Air Line Filter
Grade 7	General Purpose Air Line Filter
Grade 9	Separator/Filter
Grade 11	Moisture Separator
