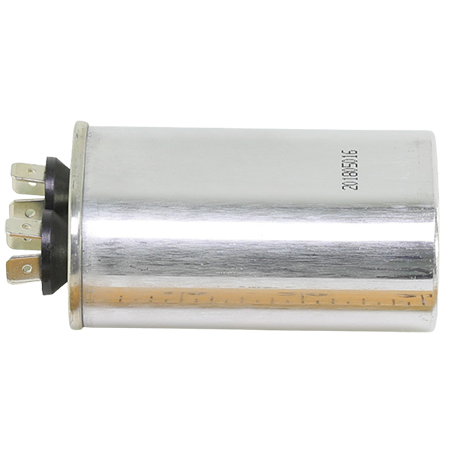

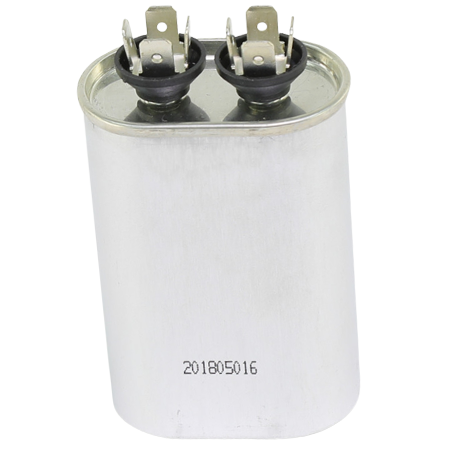

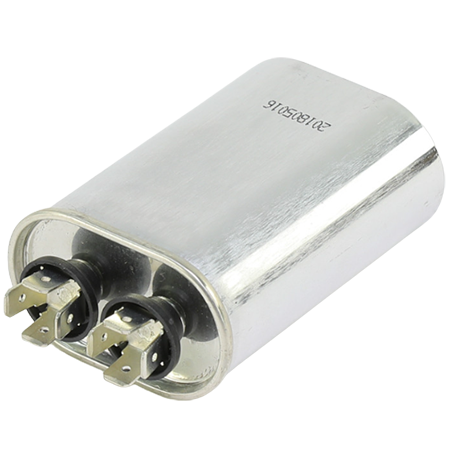

Hartland Controls CAP-10+440 Oval Run Dual Capacitor 370+440V 10MFD

Hartland Controls CAP-10+440 Oval Run Dual Capacitor 370+440V 10MFD
Images for general purposes only. Actual may be different than depicted.
Hartland Controls CAP-10+440 Oval Run Dual Capacitor 370+440V 10MFD Hartland Controls CAP-10+440 Oval Run Dual Capacitor 370/440V Hartland Controls CAP-10+440 Oval Run Dual Capacitor 10 MFD

Hartland Controls CAP-10+440 Oval Run Dual Capacitor 370+440V 10MFD

SKU: CAP-10/440
Rating: (1)
Quantity Price Stock
53
Usually Ships 1 - 2 Weeks
$13.59     /ea
53
0
$0.00
0
$0.00
0
CAP-10/440
The CAP-10/440 is an oval-run dual capacitor that has an electrical rating of 370 or 440V, 50/60 Hz, and 10 MFD(µF) capacitance.  It has a -40 to 158°F (-40 to 70°C) operating temperature with a 10,000A AFC rating.  CE- marked, UL recognized & listed.

The oval-run dual capacitor is suitable for single-phase motor applications.  The unit is used to increase torque and power by allowing a phase shift to the secondary winding of the motor.  Designed with movable contacts, heavy-duty silver alloy, and an aluminum-filled construction that provides longer life.

Ideal Applications:

  • HVAC/R
  • Food & Beverage
  • Pool & Spa
  • Motors
  • Electronics
The CAP-10/440 is easy to install with quick-connect terminals and strap mounting.
Coil Terminal Connections 0.250" x 0.032" Quick Connect Terminals
Mounting Strap Mount
Frequency 50/60 Hz
Capacitance Tolerance 3% available
Maximum Leakage Current 30 uA
Maximum Internal Protection 0.1% Internal Protection Bridge up to 10,000A
Maximum Dissipation Factor 0.1%
Operating Temperature -40 to 158°F (-40 to 70°C)
Rated Voltage 370 & 440V
Approvals CE- marked, UL recognized & listed
