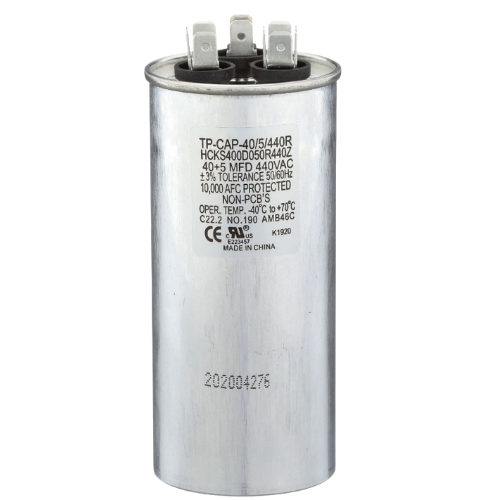

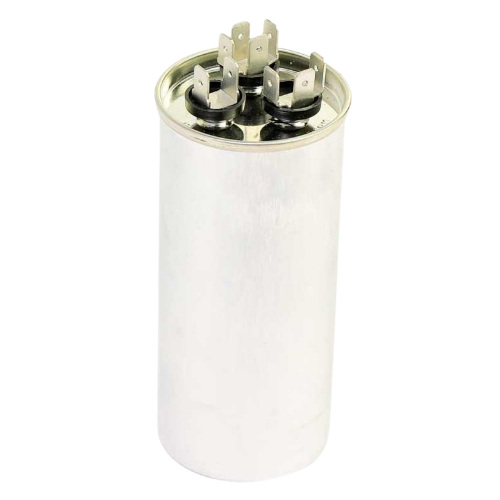

Hartland Controls CAP-40+5+440R Round Run Dual Capacitor 370+440V 40MFD

Name: Hartland Controls CAP-40+5+440R Round Run Dual Capacitor 370+440V 40MFD
Brand: Hartland Controls
SKU: CAP-40/5/440R
Price: 25.80 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Hartland Controls CAP-40+5+440R Round Run Dual Capacitor 370+440V 40MFD

SKU: CAP-40/5/440R

Brand:

Rating:

Quantity	Price	Stock
123 Usually Ships 3-4 Weeks	$25.80 /ea	123

Add to Cart

Add to Wishlist

The CAP-40/5/440R found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Genteq C3405R Dual Round Capacitor 370v 40+5MFD	C3405R Brand Genteq (Regal Beloit)

Add to Cart

Add to Wishlist

Hartland Motor Run Capacitors

A run capacitor, also known as a start capacitor, boosts the current or reduces the power factor to an electrical motor. Common applications include HVAC, pool and spa, motors, food service and electronics. Our engineers and quality specialists provide services that meet or exceed customer requirements—all capacitors undergo in-house testing and validation.

Features:

• Single and Dual rated values
• Round or oval case options
• Aluminum oil filled construction
• Designed & manufactured in accordance with UL 810 and EIA standard RS-456

Rated Voltage	370 & 440V
Operating Temperature	-40C to 70C
Dissipation Factor	0.1% max
Internal Protection	0.1% max. UL recognized internal protection bridge capable of interrupting up to 10K amp
Capacitance Tolerance	3% available
Leakage Current	30uA max
Frequency	50/60Hz
Operating Life	22,000 hour with 94% survival 60,000 hours available
Terminations	0.250â€³ x 0.032â€³ QC terminals
Case Material	Unpainted aluminum construction

Download Product Information:

Hartland Controls Run Capacitor Catalog Specification Sheet
