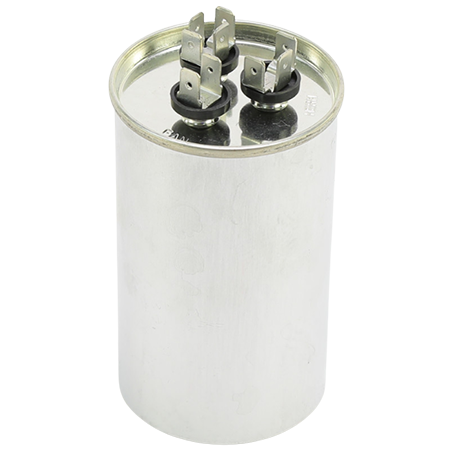

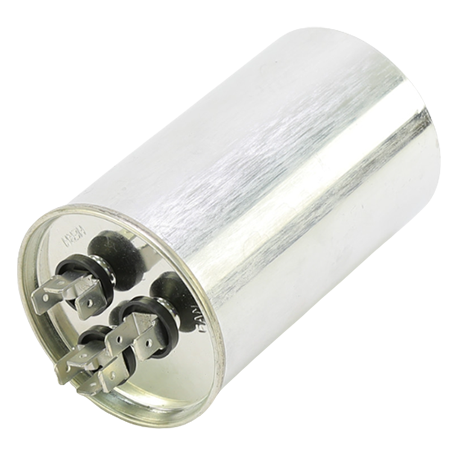

Hartland Controls CAP-45+10+440R Round Run Dual Capacitor 370+440V 45MFD

Name: Hartland Controls CAP-45+10+440R Round Run Dual Capacitor 370+440V 45MFD
Brand: Hartland Controls
SKU: CAP-45/10/440R
Price: 22.02 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Hartland Controls CAP-45+10+440R Round Run Dual Capacitor 370+440V 45MFD

SKU: CAP-45/10/440R

Brand:

Rating:

Quantity	Price	Stock
80 Usually Ships 1 - 2 Weeks	$22.02 /ea	80

Add to Cart

Add to Wishlist

The CAP-45/10/440R found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Trane CPT0688 Dual Round Run Capacitor 45+12.5MFD 440V	CPT0688 Brand Trane

Add to Cart

Add to Wishlist

The CAP-45+10+440R is a round-run dual capacitor that has an electrical rating of 370/440V, 45+10 MFD, and 50/60 Hz frequency. It is designed with an aluminum oil-filled casing that has a -40°C to 70°C(-40°F to 158°F) operating temperature. CE-marked, UL-recognized, and listed.

The round-run dual capacitor is suitable for HVAC/R, food & beverage, pool & spa, motors, and electronics application. The unit is used to increase the torque and power factor of motors by providing a phase shift to the secondary windings.

The CAP-45+10+440R is easy to install using strap mounting and quick-connect terminals.

Voltage	370 and 440V
Operating Temperature	-40°C to 70°C (-40°F to 158°F)
Dissipation Factor	0.1% Maximum
Internal Protection	0.1% Maximum
Capacitance Tolerance	3% Available
Frequency	50/60 Hz
Locked Rotor Current	45+10 MFD
Leakage Current	30uA Maximum
Terminal Connection	.0250” x 0.032” Quick Connect
Case Material	Unpainted Aluminum

Download Product Information:

Hartland Controls Motor Run Capacitor HCK Series Catalog

Hartland Controls CAP-45+10+440R Round Run Dual Capacitor Technical Datasheet
