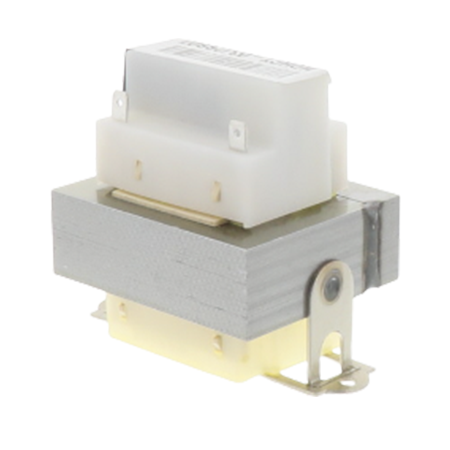

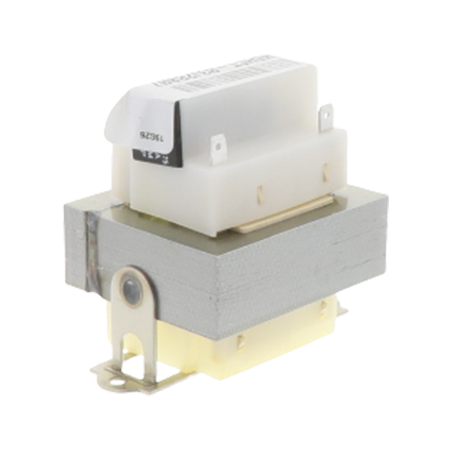

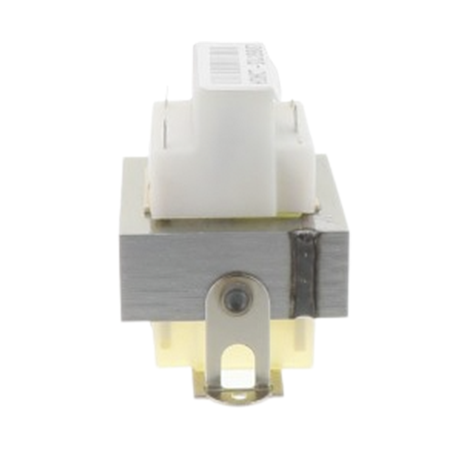

The HCT-03J2BB07 is a transformer that has a 277V primary and 24V secondary voltage. It has a 75VA power consumption and 50/60 Hz frequency. UL/CUL recognized and CSA certified.
The transformer is suitable for HVAC, water pumps, electronics, food service, pools, and spa applications. The unit is used to convert the high voltage of a circuit through magnetic induction to a lower suitable power for the appliance.
The HCT-03J2BB07 is easy to install and can be foot mounted with 18 AWG stranded 2/64" size insulation.
| Primary Voltage | 277V |
|---|---|
| Secondary Voltage | 24V |
| Power Rating | 75VA |
| Frequency | 50/60 Hz |
| Approvals | UL/CUL recognized and CSA certified |
| Insulation Thickness | 2/64" |
| Quick Connection Size | 0.250" x 0.032" |
| Insulation System | 130°C Class B |
| Wire Size | 18 AWG |
Download Product Information:
Hartland Controls HCT-03J2BB07 Transformer Technical Datasheet
By Randy
from Covington TN
Yes, I would recommend this product to a friend or co-worker
Worked great
