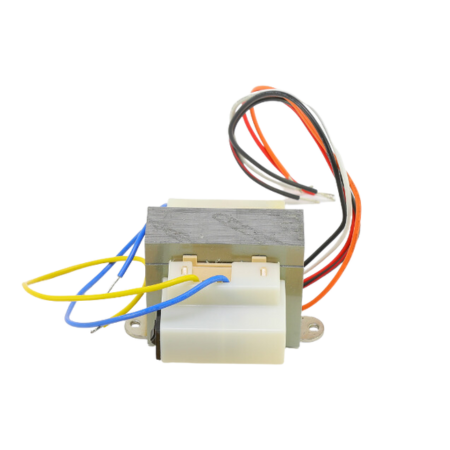

Hartland Controls TRAN-75VA Transformer Primary 120-208-240-480V Secondary 24V 75VA

Name: Hartland Controls TRAN-75VA Transformer Primary 120-208-240-480V Secondary 24V 75VA
Brand: Hartland Controls
SKU: TRAN-75VA
Price: 73.26 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Hartland Controls TRAN-75VA Transformer Primary 120-208-240-480V Secondary 24V 75VA

SKU: TRAN-75VA

Brand:

Rating:

Quantity	Price	Stock
7 Usually Ships 3 - 10 Business Days	$73.26 /ea	7

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The Hartland Controls TRAN-75VA is a transformer with 120V/208V/240V/480V primary voltages and 24 VAC secondary voltage. This device also has a 75 VA and 50/60 Hz power supply. UL and CSA Listed.

The transformer switches voltage from high to low by magnetic induction. The component is in Class 2 when not wet and Class 3 when wet. It features non-inherently limited, secondary fusing, and quick-connect terminals.

The TRAN-75VA is used in circuit breakers and is suitable for applications like HVAC systems, spas, pools, water pumps, food services, and electronics. It has multiple mounting options from chassis, surface, and foot mount.

Secondary Voltage	24 VAC (blue) - Full Load
VA Rating	75 VA
Approvals	UL and CSA Listed
Frequency	50/60 Hz
Primary Voltage	120V(white), 208V(red), 240V(orange), 480V(black/red)
Wire Size	18 AWG Stranded with 2/64″ Insulation Thickness
Insulation System	130°C Class B
Termination Style	Quick Connect (Solder)
Series	HCT
Mount Type	Surface/Foot/Chassis Mount

Download Product Information:

Hartland Controls HCT Series 75 VA Transformer Data Sheet

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

There is no way for me to respond to the answer you just send me so the SKU number that is listed for the 75 VA transformer i.e., SKU TRAN-75VA is your number. It's not the Hartland part number. Hartland numbers look like this HCT-01J2BB07.

Asked on August 15, 2019 by jeff from Aiken SC

1 Answers

Have an answer? Click Here

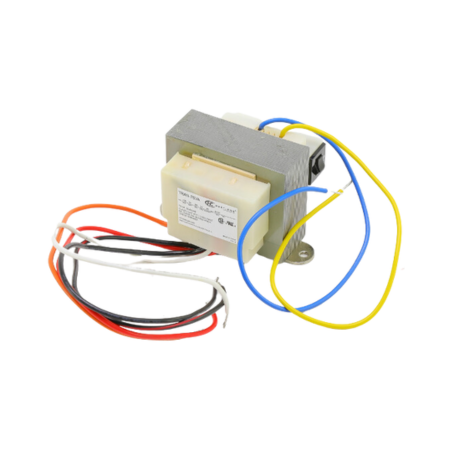

You can see the Hartland label here:
You can see the part number is TRAN-75VA
It might be listed on the old label as HCT-08J2WW

Replied on August 15, 2019 by Ron from Industrial Stores

What is the Hartland Controls Part Number for your SKU # TRAN-75VA?

Asked on August 15, 2019 by jeff from Aiken SC

1 Answers

Have an answer? Click Here

The part number is TRAN-75VA. That's the Hartland part number. It's also the SKU #.

Replied on August 15, 2019 by Ron from Industrial Stores
